Triangle & Choker Slings
Triangle Choker Sling

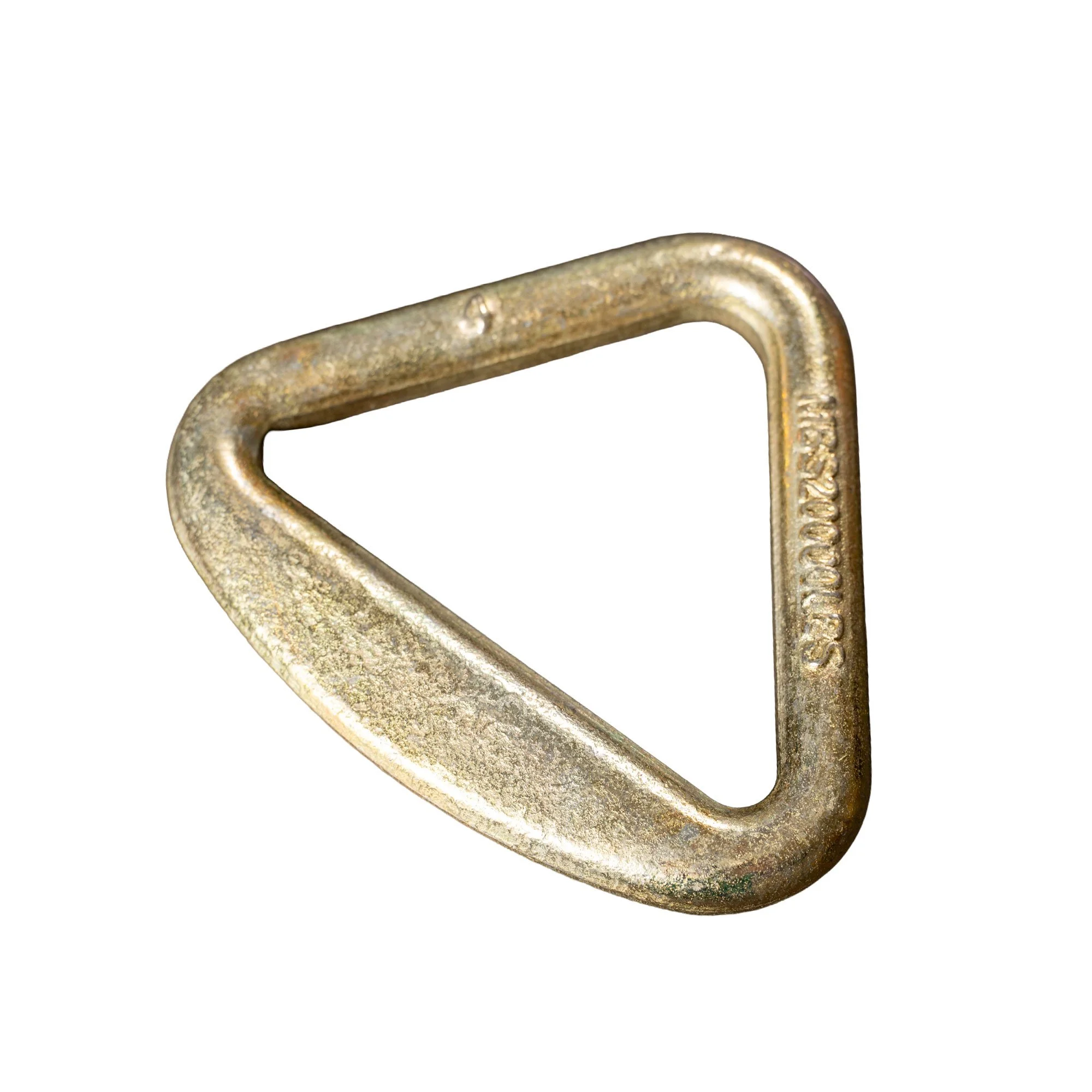

Fitted with a forged triangle ring on one end, this sling cinches securely around irregular or bundled loads for choker hitch lifts.
Specifications
Width: 1" – 12"+
Length: 3' – 20'+
TYPE 1
Triangle Choker
| Width | Stock No. | Vertical | Choker | Vertical Basket |
|---|---|---|---|---|
| 2" | TC-1-62 | 2400 | 1920 | 4800 |
| 2" | TC-1-92 | 3200 | 2560 | 6400 |
| 2" | TC-2-62 | 4800 | 3840 | 9600 |
| 2" | TC-2-92 | 6400 | 5120 | 12800 |
| 3" | TC-1-63 | 3600 | 2880 | 7200 |
| 3" | TC-1-93 | 4800 | 3840 | 9600 |
| 3" | TC-2-63 | 6660 | 5328 | 13320 |
| 3" | TC-2-93 | 8880 | 7104 | 17760 |
| 4" | TC-1-64 | 4800 | 3840 | 9600 |
| 4" | TC-1-94 | 6400 | 5120 | 12800 |
| 4" | TC-2-64 | 8640 | 6912 | 17280 |
| 4" | TC-2-94 | 11520 | 9216 | 23040 |
| 5" | TC-1-65 | 6000 | 4800 | 12000 |
| 5" | TC-1-95 | 8000 | 6400 | 16000 |
| 5" | TC-2-65 | 10500 | 8400 | 21000 |
| 5" | TC-2-95 | 14000 | 11200 | 28000 |
Rated capacities are shown in pounds. Do not exceed working load limits. Verify all data and sling condition before use.
Triangle × Triangle Sling
Forged triangle fittings at both ends connect easily to hooks or shackles for straight vertical or basket-style lifts.
Specifications
Width: 1" – 12"+
Length: 3' – 20'+
TYPE 2
Triangle × Triangle
| Width | Stock No. | Vertical | Choker* | Vertical Basket |
|---|---|---|---|---|
| 6" | TT-1-66 | 7200 | 5760 | 14400 |
| 6" | TT-1-96 | 9600 | 7680 | 19200 |
| 6" | TT-2-66 | 12240 | 9792 | 24480 |
| 6" | TT-2-96 | 16320 | 13056 | 32640 |
| 8" | TT-1-98 | 12800 | 10240 | 25600 |
| 8" | TT-2-98 | 20480 | 16384 | 40960 |
| 10" | TT-1-910 | 16000 | 12800 | 32000 |
| 10" | TT-2-910 | 24000 | 19200 | 48000 |
| 12" | TT-1-912 | 19200 | 15360 | 38400 |
| 12" | TT-2-912 | 26880 | 21504 | 53760 |
Important: Triangle × Triangle slings are unable to make a choker lift. The choker figures are retained here only because they appear in the source catalog; verify with the manufacturer before use.
Rated capacities are shown in pounds. Do not exceed working load limits. Verify all data and sling condition before use.
Eye & Eye Slings

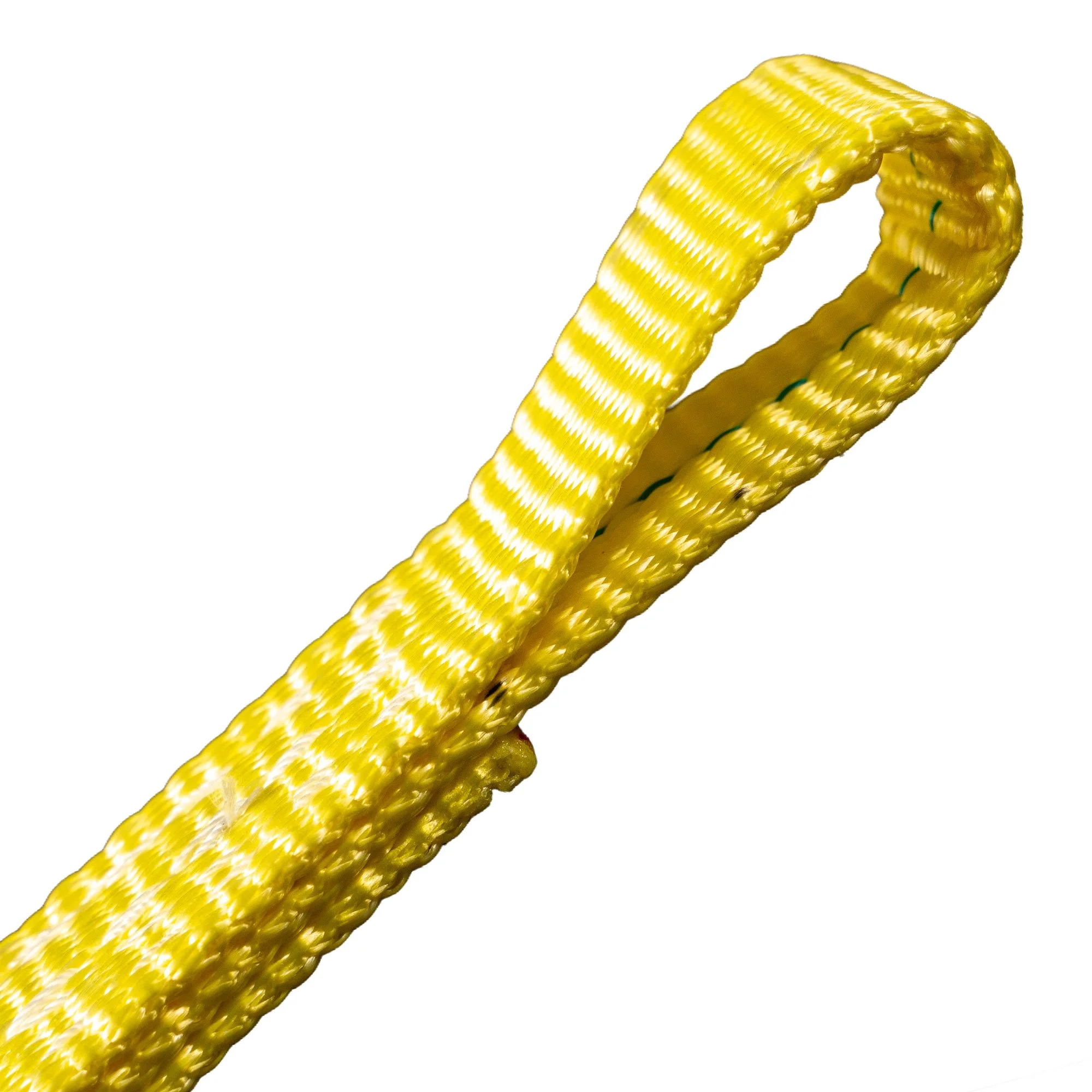

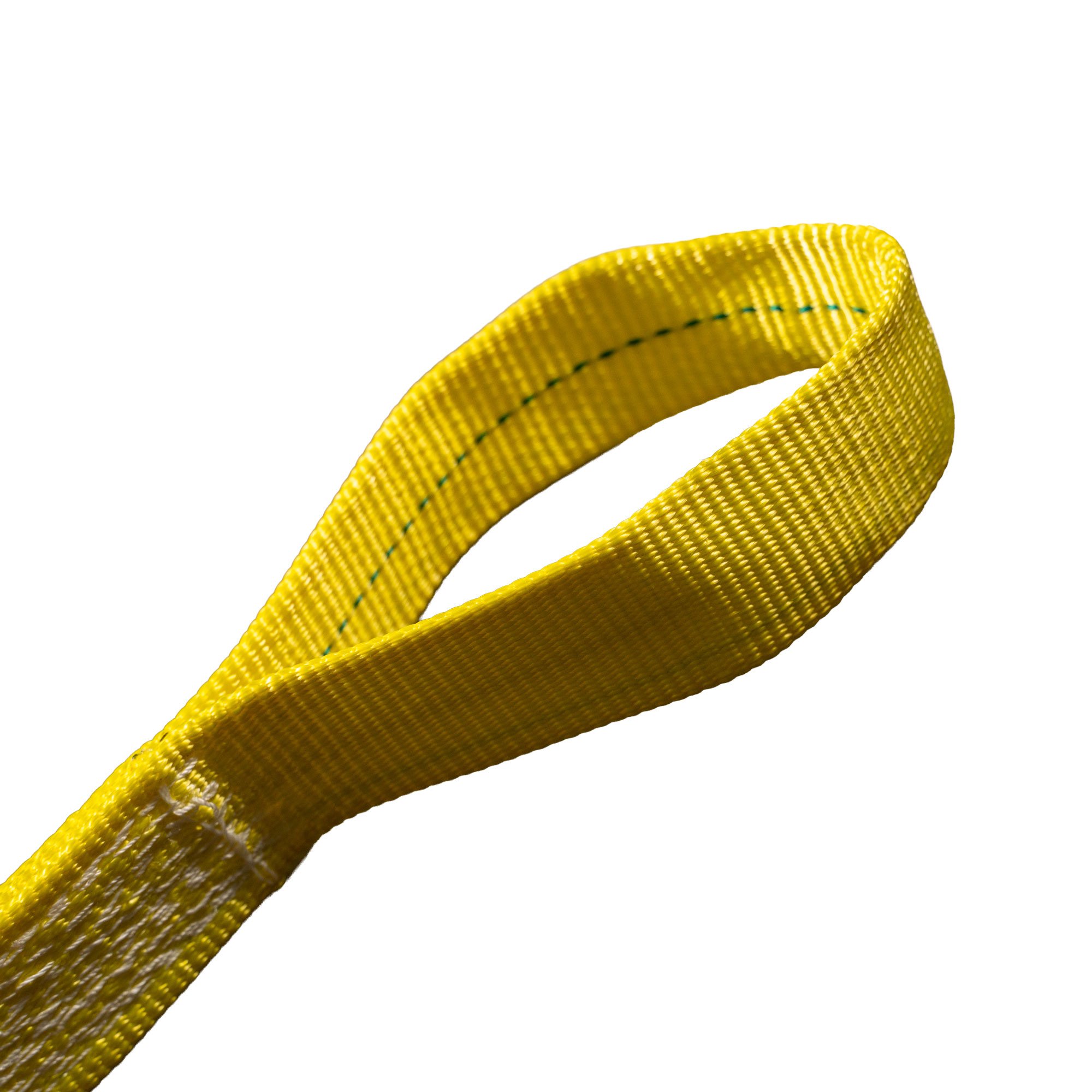

Eye & Eye Flat Sling
Flat eyes at both ends lay smoothly against hooks or shackles, suited for vertical, basket, and choker hitches alike.
Specifications
Width: 1" – 12"+
Length: 3' – 20'+
TYPE 3
Eye & Eye — Flat
| Width | Stock No. | Vertical | Choker | Vertical Basket |
|---|---|---|---|---|
| 1" | EE-1-61 | 1200 | 960 | 2400 |
| 1" | EE-1-91 | 1600 | 1280 | 3200 |
| 1" | EE-2-61 | 2400 | 1920 | 4800 |
| 1" | EE-2-91 | 3200 | 2560 | 6400 |
| 1" | EE-3-61 | 3600 | 2880 | 7200 |
| 1" | EE-3-91 | 4800 | 3840 | 9600 |
| 1" | EE-4-61 | 4800 | 3840 | 9600 |
| 1" | EE-4-91 | 6400 | 5120 | 12800 |
| 2" | EE-1-62 | 2400 | 1920 | 4800 |
| 2" | EE-1-92 | 3200 | 2560 | 6400 |
| 2" | EE-2-62 | 4800 | 3840 | 9600 |
| 2" | EE-2-92 | 6400 | 5120 | 12800 |
| 2" | EE-3-62 | 6660 | 5328 | 13320 |
| 2" | EE-3-92 | 8880 | 7104 | 17760 |
| 2" | EE-4-62 | 8880 | 7104 | 17760 |
| 2" | EE-4-92 | 11840 | 9472 | 23680 |
| 3" | EE-1-63 | 3600 | 2880 | 7200 |
| 3" | EE-1-93 | 4800 | 3840 | 9600 |
| 3" | EE-2-63 | 6660 | 5328 | 13320 |
| 3" | EE-2-93 | 8880 | 7104 | 17760 |
| 3" | EE-3-63 | 9990 | 7992 | 19980 |
| 3" | EE-3-93 | 13320 | 10656 | 26640 |
| 3" | EE-4-63 | 13320 | 10656 | 26640 |
| 3" | EE-4-93 | 17760 | 14208 | 35520 |
| 4" | EE-1-64 | 4800 | 3840 | 9600 |
| 4" | EE-1-94 | 6400 | 5120 | 12800 |
| 4" | EE-2-64 | 8640 | 6912 | 17280 |
| 4" | EE-2-94 | 11520 | 9216 | 23040 |
| 4" | EE-3-64 | 12960 | 10368 | 25920 |
| 4" | EE-3-94 | 17280 | 13824 | 34560 |
| 4" | EE-4-64 | 17280 | 13824 | 34560 |
| 4" | EE-4-94 | 23040 | 18432 | 46080 |
Rated capacities are shown in pounds. Do not exceed working load limits. Verify all data and sling condition before use.

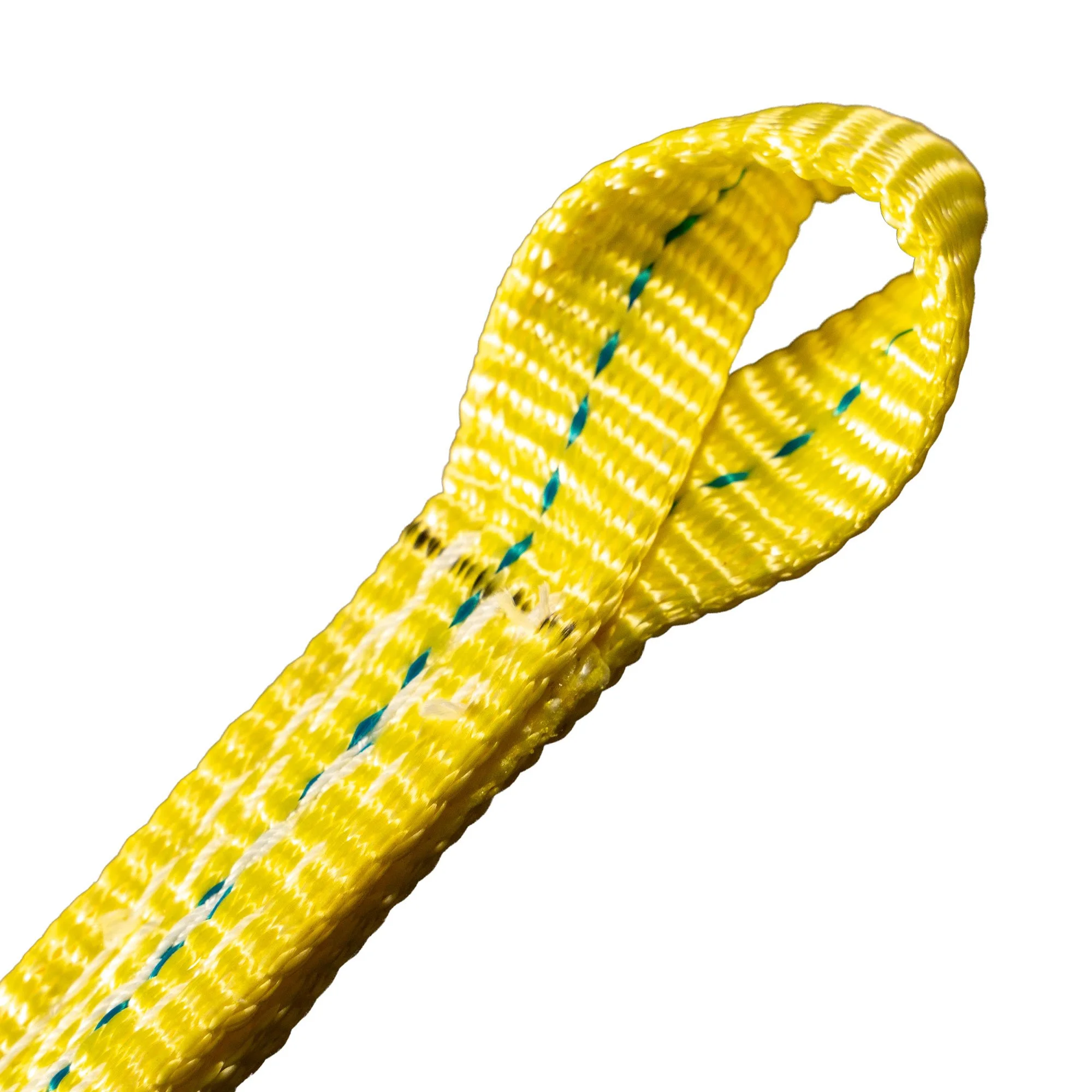

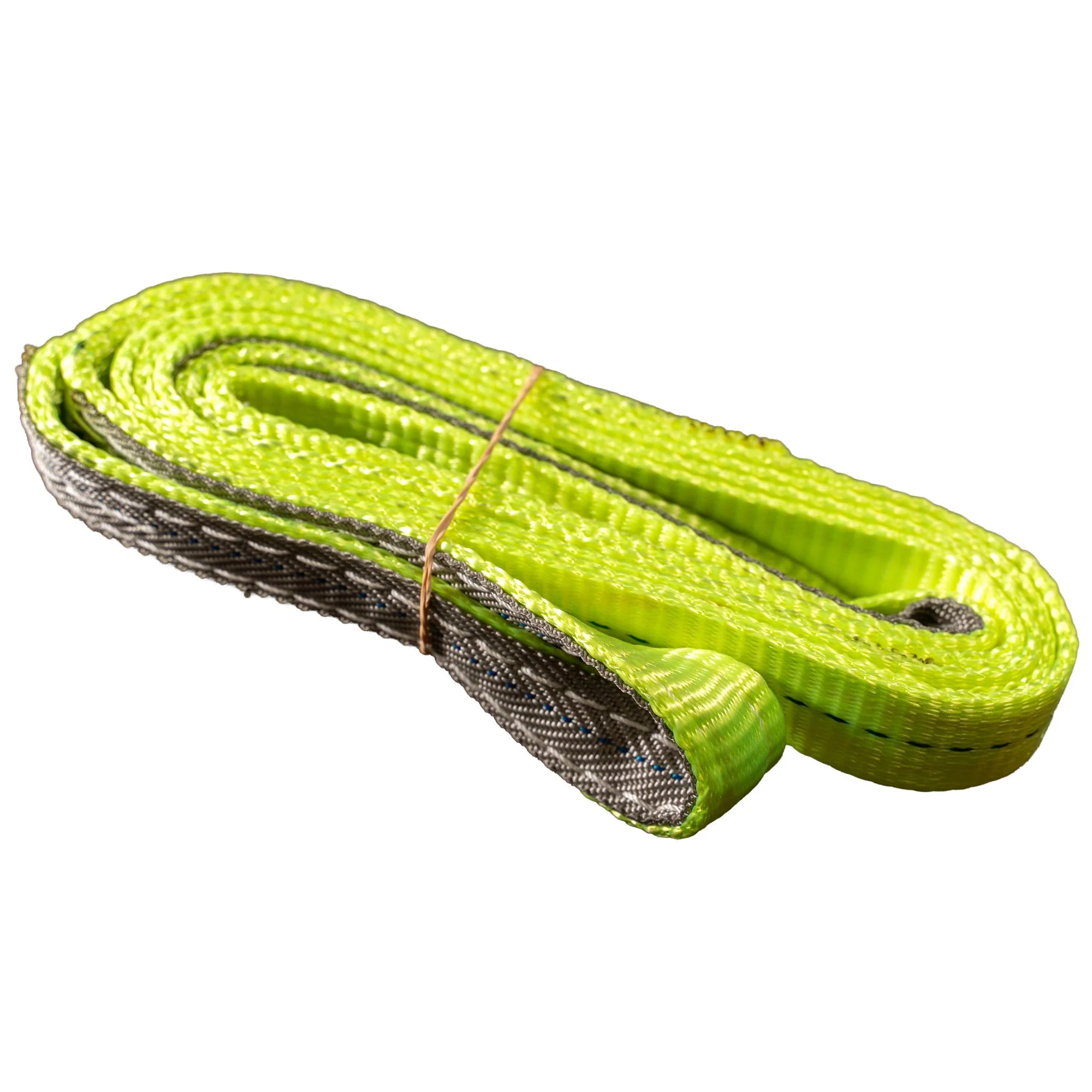

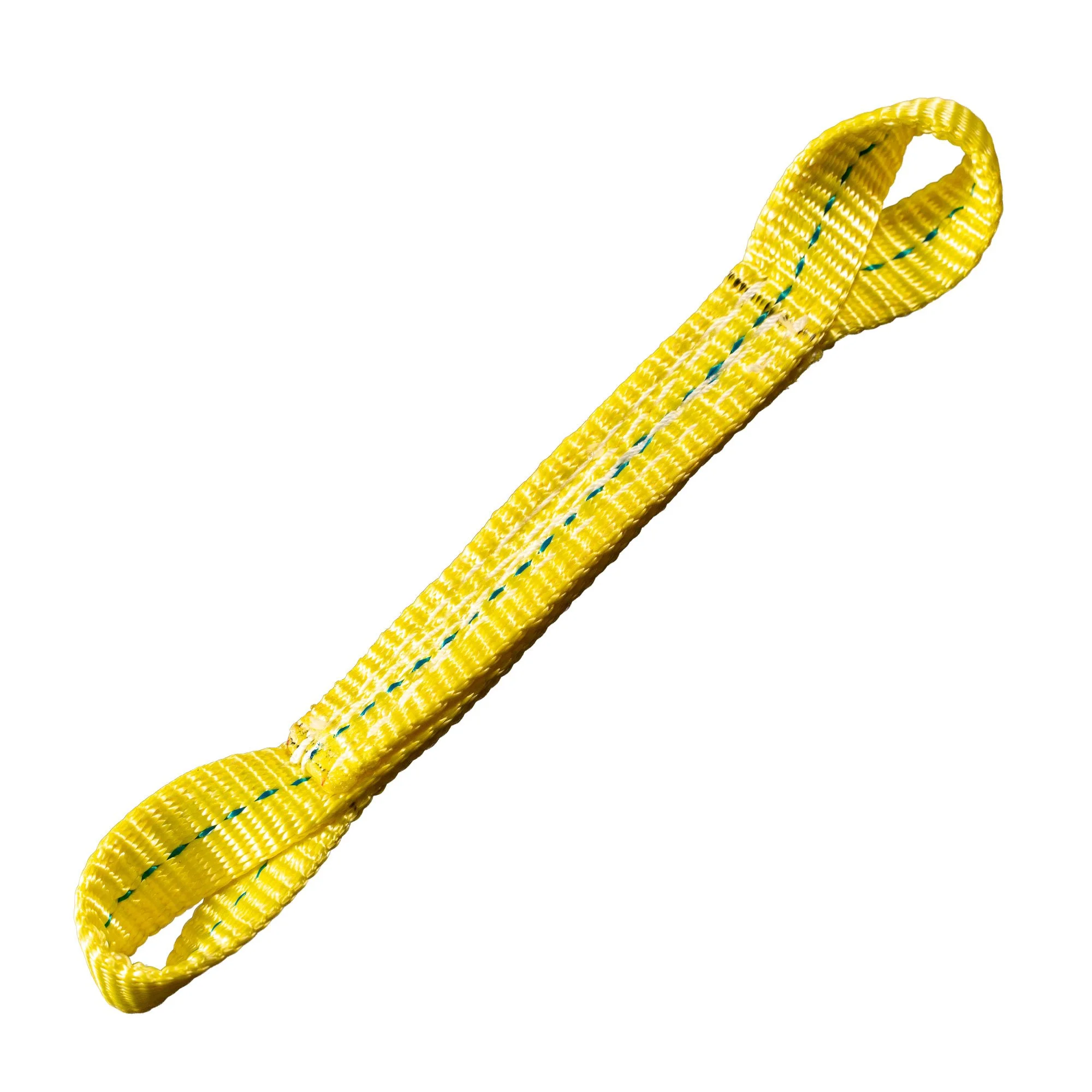

Eye & Eye Twist Sling
Eyes are twisted 90 degrees relative to the body, letting the eye sit flat against a hook regardless of orientation.
Specifications
Width: 1" – 12"+
Length: 3' – 20'+
TYPE 4
Eye & Eye — Twist
| Width | Stock No. | Vertical | Choker | Vertical Basket |
|---|---|---|---|---|
| 5" | EE-1-65 | 6000 | 4800 | 12000 |
| 5" | EE-1-95 | 8000 | 6400 | 16000 |
| 5" | EE-2-65 | 10500 | 8400 | 21000 |
| 5" | EE-2-95 | 14000 | 11200 | 28000 |
| 5" | EE-3-65 | 15750 | 12600 | 31500 |
| 5" | EE-3-95 | 21000 | 16800 | 42000 |
| 5" | EE-4-65 | 21000 | 16800 | 42000 |
| 5" | EE-4-95 | 28000 | 22400 | 56000 |
| 6" | EE-1-66 | 7200 | 5760 | 14400 |
| 6" | EE-1-96 | 9600 | 7680 | 19200 |
| 6" | EE-2-66 | 12240 | 9792 | 24480 |
| 6" | EE-2-96 | 16320 | 13056 | 32640 |
| 6" | EE-3-66 | 18360 | 14688 | 36720 |
| 6" | EE-3-96 | 24480 | 19584 | 48960 |
| 6" | EE-4-66 | 24480 | 19584 | 48960 |
| 6" | EE-4-96 | 32640 | 26112 | 65280 |
| 8" | EE-1-98 | 12800 | 10240 | 25600 |
| 8" | EE-2-98 | 20480 | 16384 | 40960 |
| 8" | EE-3-98 | 30720 | 24576 | 61440 |
| 8" | EE-4-98 | 40960 | 32768 | 81920 |
| 10" | EE-1-910 | 16000 | 12800 | 32000 |
| 10" | EE-2-910 | 24000 | 19200 | 48000 |
| 10" | EE-3-910 | 36000 | 28800 | 72000 |
| 10" | EE-4-910 | 48000 | 38400 | 96000 |
| 12" | EE-1-912 | 19200 | 15360 | 38400 |
| 12" | EE-2-912 | 26880 | 21504 | 53760 |
| 12" | EE-3-912 | 40320 | 32256 | 80640 |
| 12" | EE-4-912 | 53760 | 43008 | 107520 |
Rated capacities are shown in pounds. Do not exceed working load limits. Verify all data and sling condition before use.

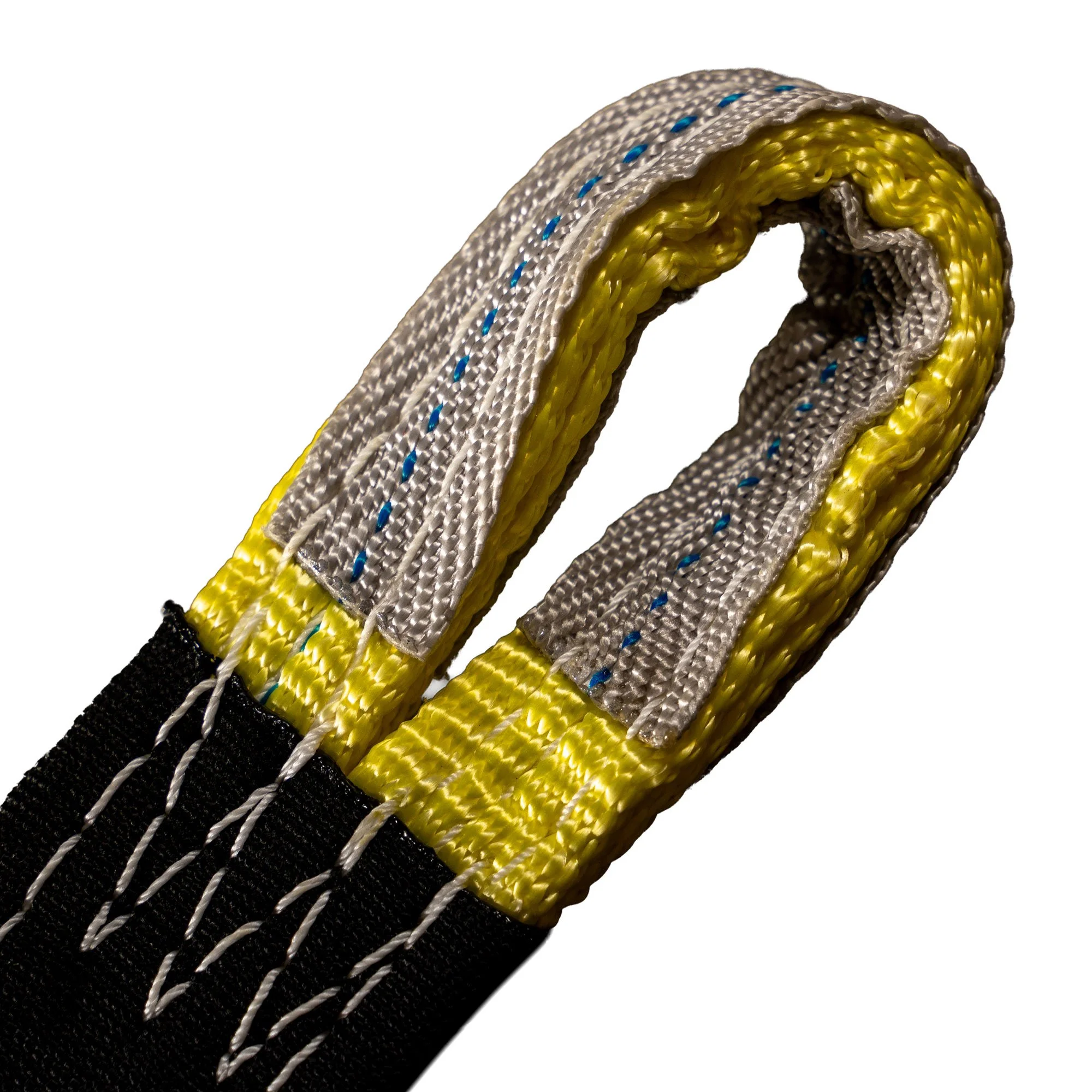

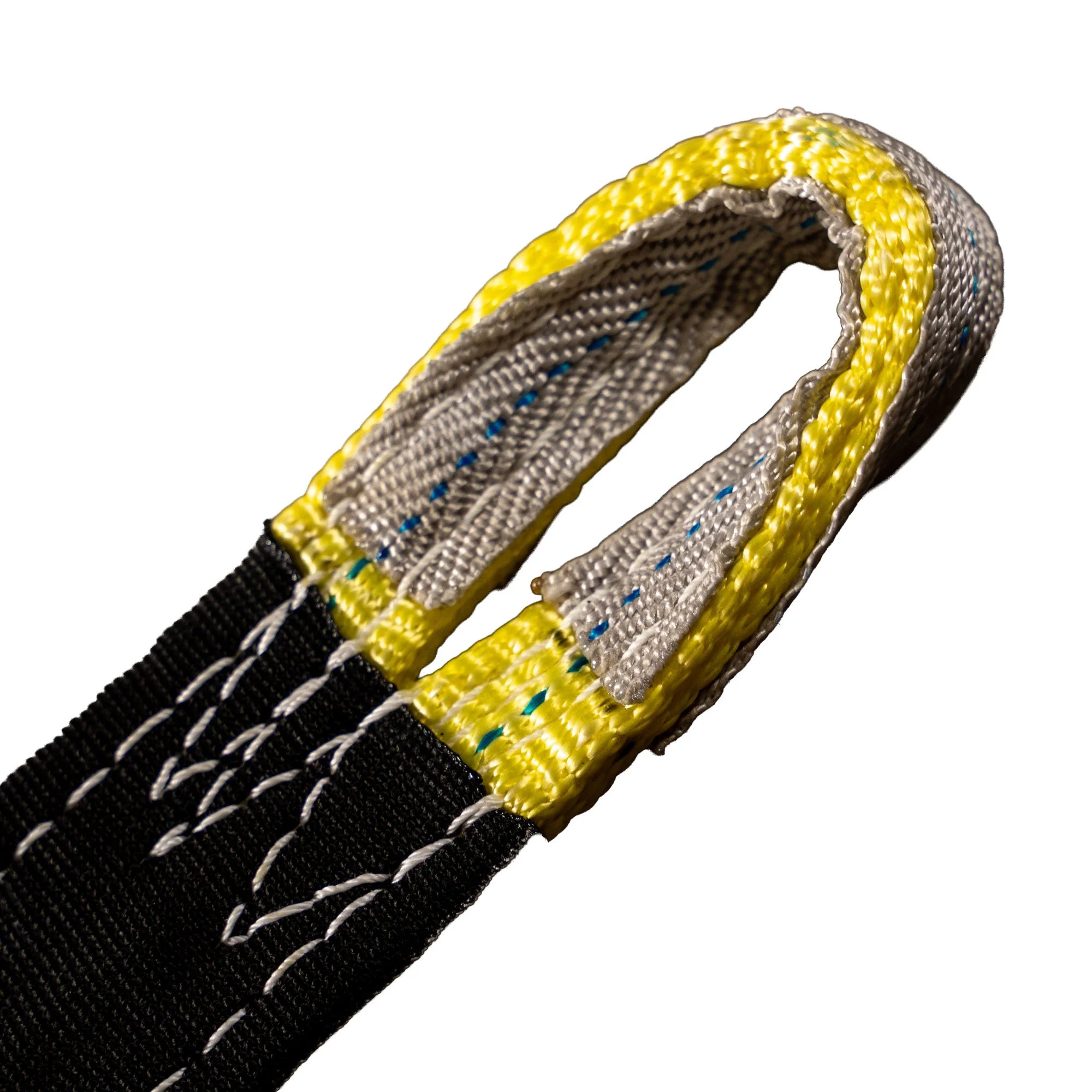

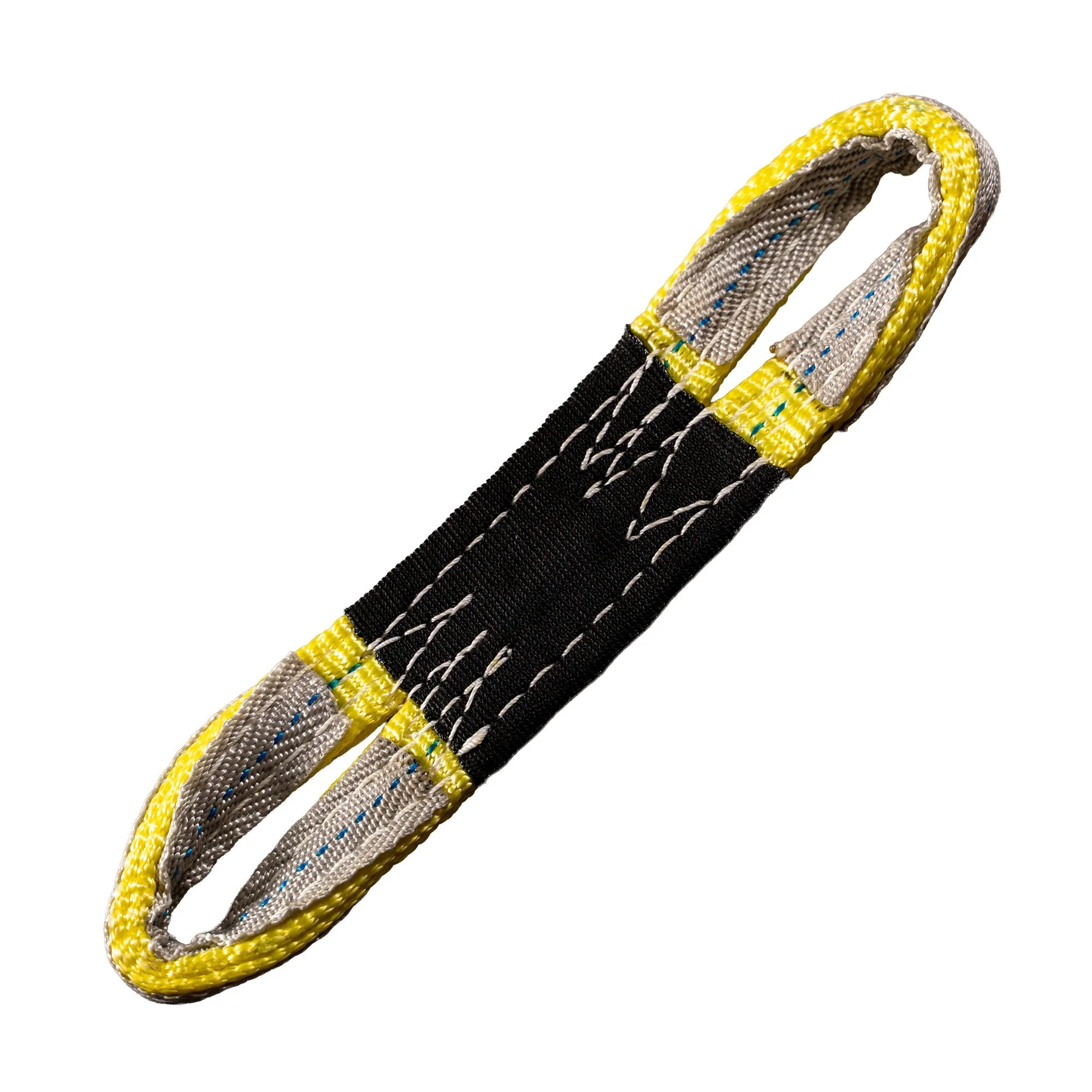

Reversed Eye Sling
Eyes are folded to the reverse side of the webbing, protecting the stitching from wear in choker configurations.
Specifications
Width: 1" – 12"+
Length: 3' – 20'+
TYPE 6 & TYPE 7
Reversed Eye / Flat Eye
| Width | Stock No. | Vertical | Choker | Vertical Basket |
|---|---|---|---|---|
| 2" | RE-1-62 | 2400 | 1920 | 4800 |
| 2" | RE-1-92 | 3200 | 2560 | 6400 |
| 2" | RE-2-62 | 4800 | 3840 | 9600 |
| 2" | RE-2-92 | 6400 | 5120 | 12800 |
| 4" | RE-1-64 | 4800 | 3840 | 9600 |
| 4" | RE-1-94 | 6400 | 5120 | 12800 |
| 4" | RE-2-64 | 9600 | 7680 | 19200 |
| 4" | RE-2-94 | 12800 | 10240 | 25600 |
| 4" | RE-3-64 | 13320 | 10656 | 26640 |
| 4" | RE-3-94 | 17760 | 14208 | 35520 |
| 4" | RE-4-64 | 17760 | 14208 | 35520 |
| 4" | RE-4-94 | 23680 | 18944 | 47360 |
| 6" | RE-1-66 | 7200 | 5760 | 14400 |
| 6" | RE-1-96 | 9600 | 7680 | 19200 |
| 6" | RE-2-66 | 13320 | 10656 | 26640 |
| 6" | RE-2-96 | 17760 | 14208 | 35520 |
| 6" | RE-3-66 | 19980 | 15984 | 39960 |
| 6" | RE-3-96 | 26640 | 21312 | 53280 |
| 6" | RE-4-66 | 26640 | 21312 | 53280 |
| 6" | RE-4-96 | 35520 | 28416 | 71040 |
Rated capacities are shown in pounds. Do not exceed working load limits. Verify all data and sling condition before use.

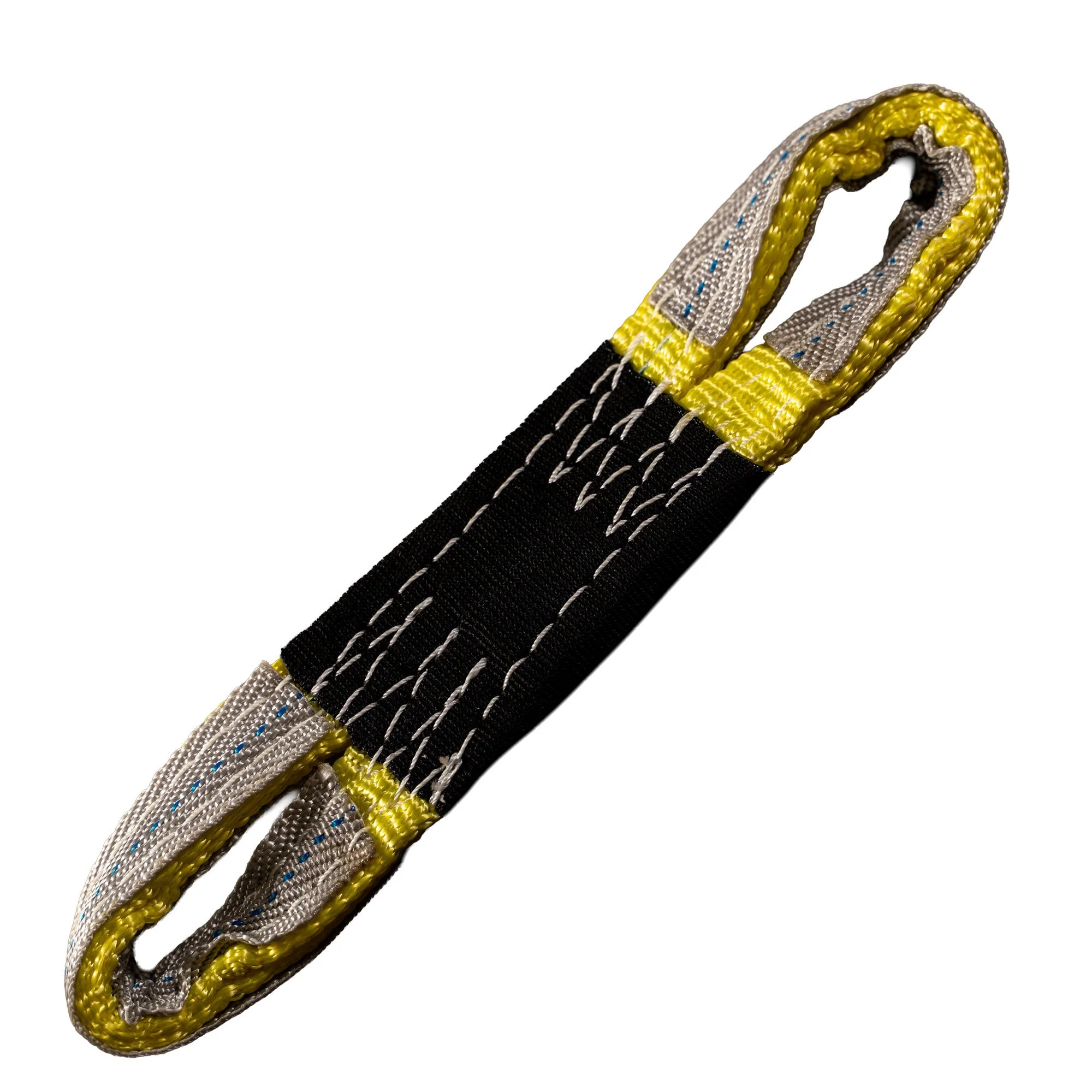

Flat Eye Sling
A clean, reliable eye-to-eye connection built for straightforward vertical or basket hitch lifts.
Specifications
Width: 1" – 12"+
Length: 3' – 20'+
TYPE 6 & TYPE 7
Reversed Eye / Flat Eye
| Width | Stock No. | Vertical | Choker | Vertical Basket |
|---|---|---|---|---|
| 2" | RE-1-62 | 2400 | 1920 | 4800 |
| 2" | RE-1-92 | 3200 | 2560 | 6400 |
| 2" | RE-2-62 | 4800 | 3840 | 9600 |
| 2" | RE-2-92 | 6400 | 5120 | 12800 |
| 4" | RE-1-64 | 4800 | 3840 | 9600 |
| 4" | RE-1-94 | 6400 | 5120 | 12800 |
| 4" | RE-2-64 | 9600 | 7680 | 19200 |
| 4" | RE-2-94 | 12800 | 10240 | 25600 |
| 4" | RE-3-64 | 13320 | 10656 | 26640 |
| 4" | RE-3-94 | 17760 | 14208 | 35520 |
| 4" | RE-4-64 | 17760 | 14208 | 35520 |
| 4" | RE-4-94 | 23680 | 18944 | 47360 |
| 6" | RE-1-66 | 7200 | 5760 | 14400 |
| 6" | RE-1-96 | 9600 | 7680 | 19200 |
| 6" | RE-2-66 | 13320 | 10656 | 26640 |
| 6" | RE-2-96 | 17760 | 14208 | 35520 |
| 6" | RE-3-66 | 19980 | 15984 | 39960 |
| 6" | RE-3-96 | 26640 | 21312 | 53280 |
| 6" | RE-4-66 | 26640 | 21312 | 53280 |
| 6" | RE-4-96 | 35520 | 28416 | 71040 |
Rated capacities are shown in pounds. Do not exceed working load limits. Verify all data and sling condition before use.
Endless Slings
Endless Sling
A continuous loop with no eyes or seams, giving flexibility for basket, choker, or vertical hitches. The bearing surface can be rotated to spread wear evenly.
Specifications
Width: 1" – 12"+
Length: 3' – 20'+
TYPE 5
Endless
| Width | Stock No. | Vertical | Choker | Vertical Basket |
|---|---|---|---|---|
| 1" | EN-1-61 | 2400 | 1920 | 4800 |
| 1" | EN-1-91 | 3200 | 2560 | 6400 |
| 1" | EN-2-61 | 4800 | 3840 | 9600 |
| 1" | EN-2-91 | 6400 | 5120 | 12800 |
| 1" | EN-3-61 | 7200 | 5760 | 14400 |
| 1" | EN-3-91 | 9600 | 7680 | 19200 |
| 1" | EN-4-61 | 9600 | 7680 | 19200 |
| 1" | EN-4-91 | 12800 | 10240 | 25600 |
| 2" | EN-1-62 | 4800 | 3840 | 9600 |
| 2" | EN-1-92 | 6400 | 5120 | 12800 |
| 2" | EN-2-62 | 9600 | 7680 | 19200 |
| 2" | EN-2-92 | 12800 | 10240 | 25600 |
| 2" | EN-3-62 | 13320 | 10656 | 26640 |
| 2" | EN-3-92 | 17760 | 14208 | 35520 |
| 2" | EN-4-62 | 17760 | 14208 | 35520 |
| 2" | EN-4-92 | 23680 | 18944 | 47360 |
| 3" | EN-1-63 | 7200 | 5760 | 14400 |
| 3" | EN-1-93 | 9600 | 7680 | 19200 |
| 3" | EN-2-63 | 13320 | 10656 | 26640 |
| 3" | EN-2-93 | 17760 | 14208 | 35520 |
| 3" | EN-3-63 | 19980 | 15984 | 39960 |
| 3" | EN-3-93 | 26640 | 21312 | 53280 |
| 3" | EN-4-63 | 26640 | 21312 | 53280 |
| 3" | EN-4-93 | 35520 | 28416 | 71040 |
| 4" | EN-1-64 | 9600 | 7680 | 19200 |
| 4" | EN-1-94 | 12800 | 10240 | 25600 |
| 4" | EN-2-64 | 17280 | 13824 | 34560 |
| 4" | EN-2-94 | 23040 | 18432 | 46080 |
| 4" | EN-3-64 | 25920 | 20736 | 51840 |
| 4" | EN-3-94 | 34560 | 27648 | 69120 |
| 4" | EN-4-64 | 34560 | 27648 | 69120 |
| 4" | EN-4-94 | 46080 | 36864 | 92160 |
| 5" | EN-1-65 | 12000 | 9600 | 24000 |
| 5" | EN-1-95 | 16000 | 12800 | 32000 |
| 5" | EN-2-65 | 21000 | 16800 | 42000 |
| 5" | EN-2-95 | 28000 | 22400 | 56000 |
| 5" | EN-3-65 | 31500 | 25200 | 63000 |
| 5" | EN-3-95 | 42000 | 33600 | 84000 |
| 5" | EN-4-65 | 42000 | 33600 | 84000 |
| 5" | EN-4-95 | 56000 | 44800 | 112000 |
| 6" | EN-1-66 | 14400 | 11520 | 28800 |
| 6" | EN-1-96 | 19200 | 15360 | 38400 |
| 6" | EN-2-66 | 24480 | 19584 | 48960 |
| 6" | EN-2-96 | 32640 | 26112 | 65280 |
| 6" | EN-3-66 | 36720 | 29376 | 73440 |
| 6" | EN-3-96 | 48960 | 39168 | 97920 |
| 6" | EN-4-66 | 48960 | 39168 | 97920 |
| 6" | EN-4-96 | 65280 | 52224 | 130560 |
| 8" | EN-1-98 | 25600 | 20480 | 51200 |
| 8" | EN-2-98 | 40960 | 32768 | 81920 |
| 8" | EN-3-98 | 61440 | 49152 | 122880 |
| 8" | EN-4-98 | 81920 | 65536 | 163840 |
| 10" | EN-1-910 | 32000 | 25600 | 64000 |
| 10" | EN-2-910 | 48000 | 38400 | 96000 |
| 10" | EN-3-910 | 72000 | 57600 | 144000 |
| 10" | EN-4-910 | 96000 | 76800 | 192000 |
| 12" | EN-1-912 | 38400 | 30720 | 76800 |
| 12" | EN-2-912 | 53760 | 43008 | 107520 |
| 12" | EN-3-912 | 80640 | 64512 | 161280 |
| 12" | EN-4-912 | 107520 | 86016 | 215040 |
Rated capacities are shown in pounds. Do not exceed working load limits. Verify all data and sling condition before use.
Basket Slings

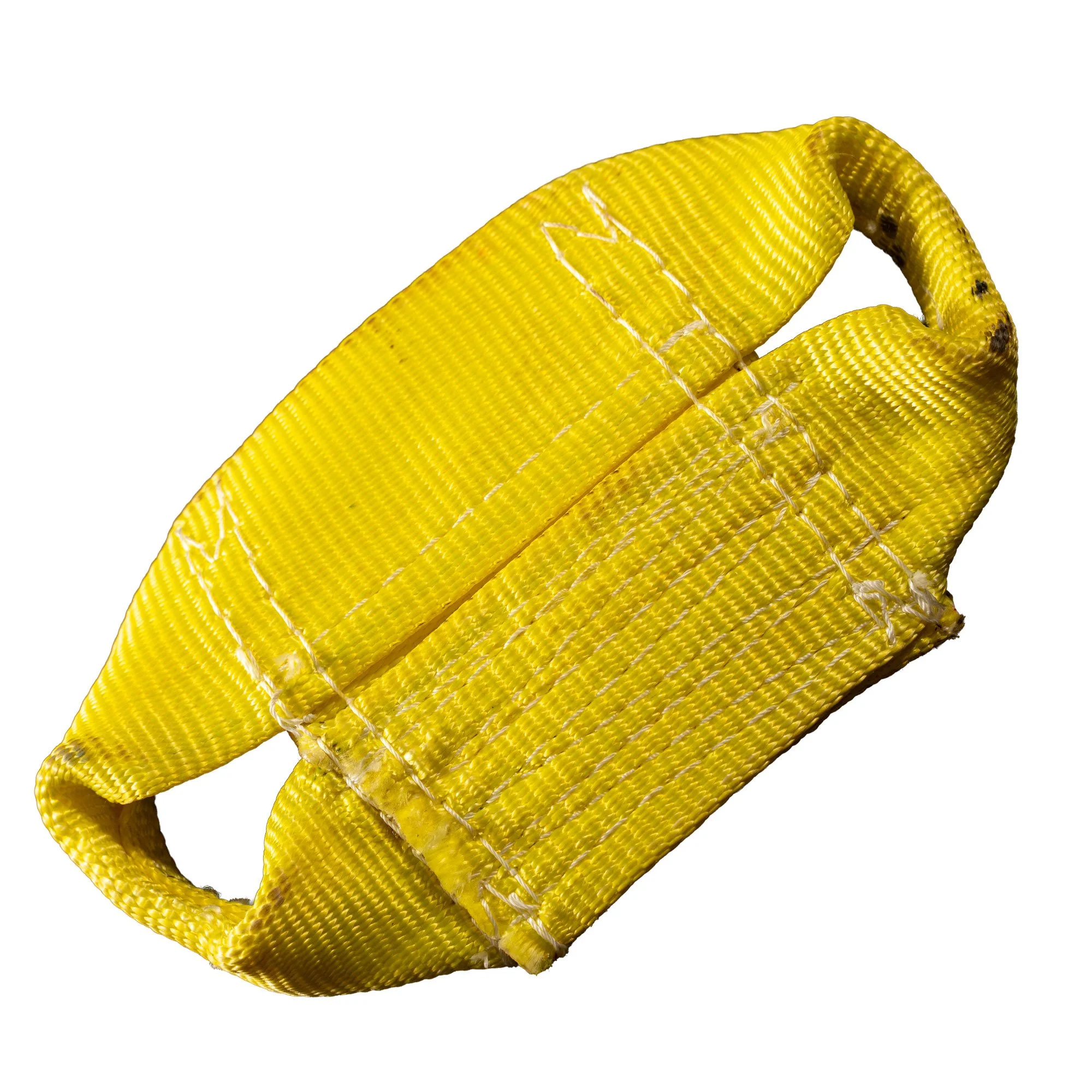

Wide Body Basket Sling
A broader bearing surface improves load stability and surface contact in basket hitch configurations.
Specifications
Width: 1" – 12"+
Length: 3' – 20'+
TYPE 8
Wide Body Basket
| Width | Stock No. | Vertical Basket | 3 Ft. Base | Adder Per Foot |
|---|---|---|---|---|
| 6" | WB-1-66 | 14400 | 31.69 | 4.90 |
| 6" | WB-1-96 | 19200 | 38.67 | 6.82 |
| 6" | WB-2-66 | 26640 | 58.77 | 8.98 |
| 6" | WB-2-96 | 35520 | 69.32 | 12.05 |
| 8" | WB-1-68 | 19200 | 38.97 | 6.26 |
| 8" | WB-1-98 | 25600 | 47.72 | 8.37 |
| 8" | WB-2-68 | 34560 | 70.66 | 11.71 |
| 8" | WB-2-98 | 46080 | 83.06 | 15.13 |
| 10" | WB-1-610 | 24000 | 65.12 | 10.39 |
| 10" | WB-1-910 | 32000 | 77.68 | 11.83 |
| 10" | WB-2-610 | 42000 | 112.09 | 19.98 |
| 10" | WB-2-910 | 56000 | 133.58 | 22.16 |
| 12" | WB-1-612 | 28800 | 70.82 | 11.65 |
| 12" | WB-1-912 | 38400 | 84.84 | 14.23 |
| 12" | WB-2-612 | 48960 | 132.69 | 21.88 |
| 12" | WB-2-912 | 65280 | 157.34 | 25.82 |
| 16" | WB-1-916 | 51200 | 118.33 | 19.53 |
| 16" | WB-2-916 | 81920 | 239.76 | 37.49 |
| 20" | WB-1-920 | 64000 | 126.98 | 24.95 |
| 20" | WB-2-920 | 96000 | 257.66 | 47.91 |
| 24" | WB-1-924 | 76800 | 135.62 | 30.23 |
| 24" | WB-2-924 | 107520 | 275.56 | 58.67 |
Rated capacities are shown in pounds. Do not exceed working load limits. Verify all data and sling condition before use.

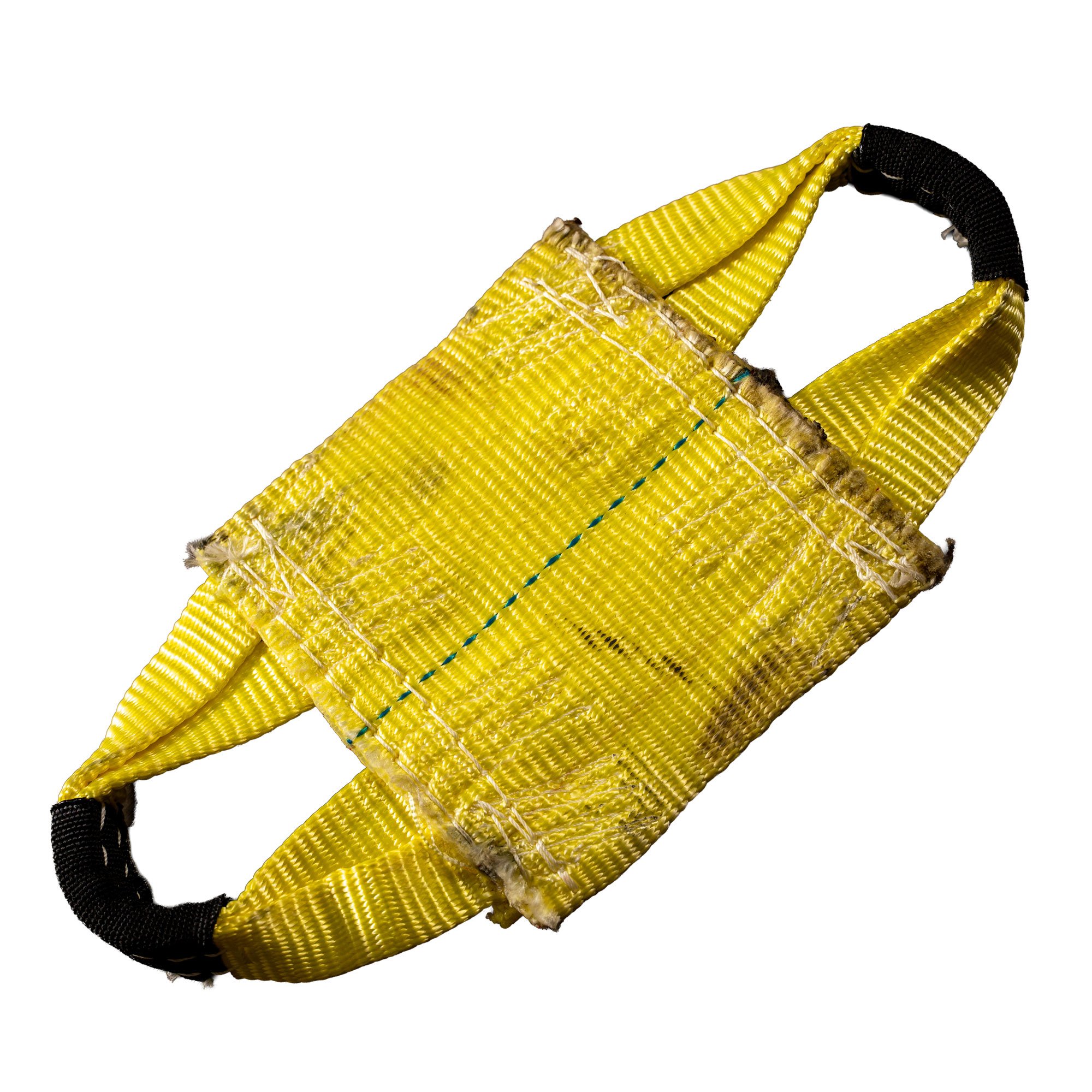

Load Balancer Basket Sling
Built for basket hitch use, this sling helps distribute weight evenly across uneven or asymmetrical loads to help maintain a level lift.
Specifications
Width: 1" – 12"+
Length: 3' – 20'+

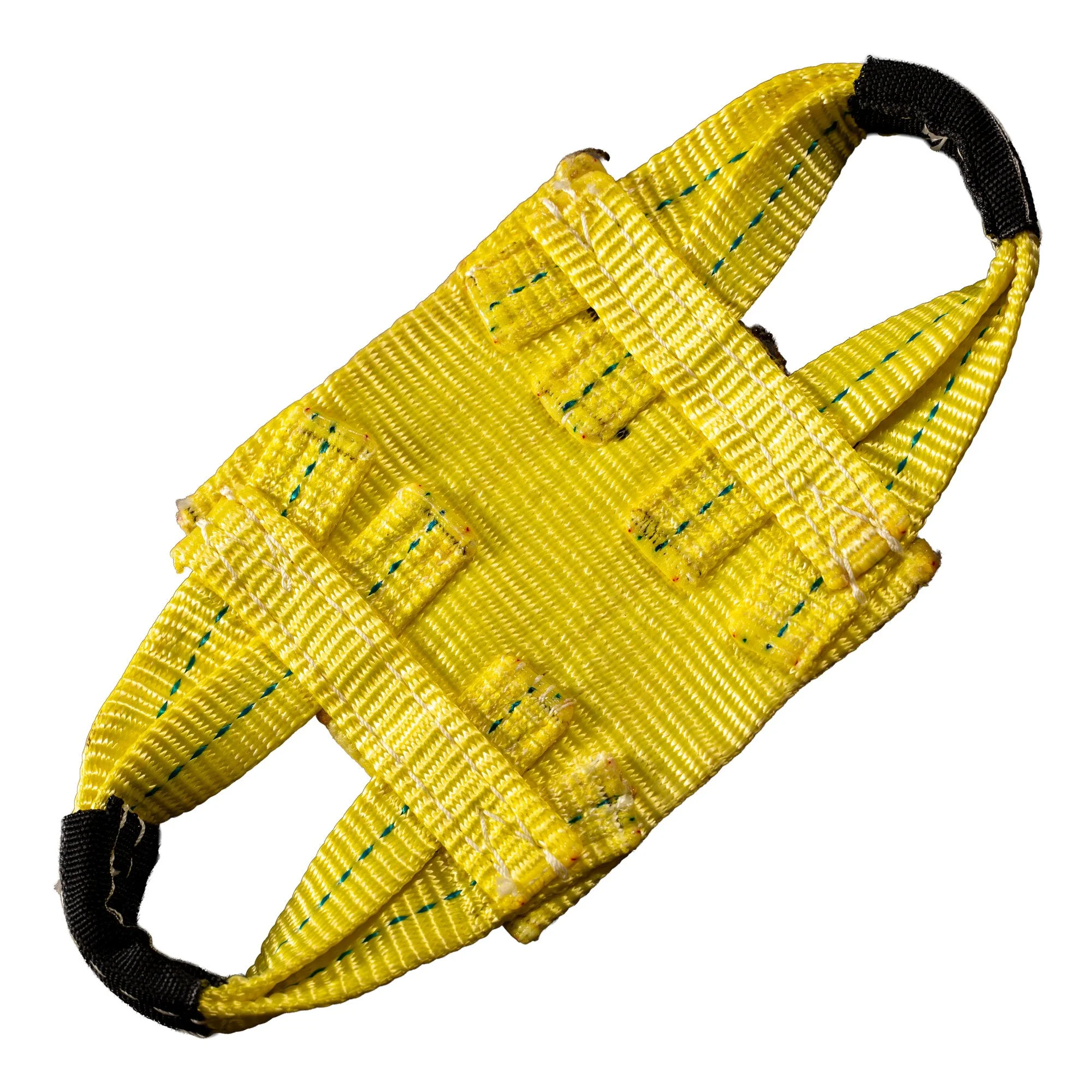

TYPE 9
Load Balancer Basket
| Width | Stock No. | Vertical Basket |
|---|---|---|
| 6" | LB-1-66 | 3000 |
| 6" | LB-1-96 | 6000 |
| 8" | LB-1-68 | 3000 |
| 8" | LB-1-98 | 6000 |
| 10" | LB-1-610 | 3000 |
| 10" | LB-1-910 | 6000 |
| 12" | LB-1-612 | 3000 |
| 12" | LB-1-912 | 6000 |
| 16" | LB-1-616 | 5000 |
| 16" | LB-1-916 | 10000 |
| 20" | LB-1-620 | 5000 |
| 20" | LB-1-920 | 10000 |
| 24" | LB-1-624 | 5000 |
| 24" | LB-1-924 | 10000 |
Rated capacities are shown in pounds. Do not exceed working load limits. Verify all data and sling condition before use.
Hardware & Fittings

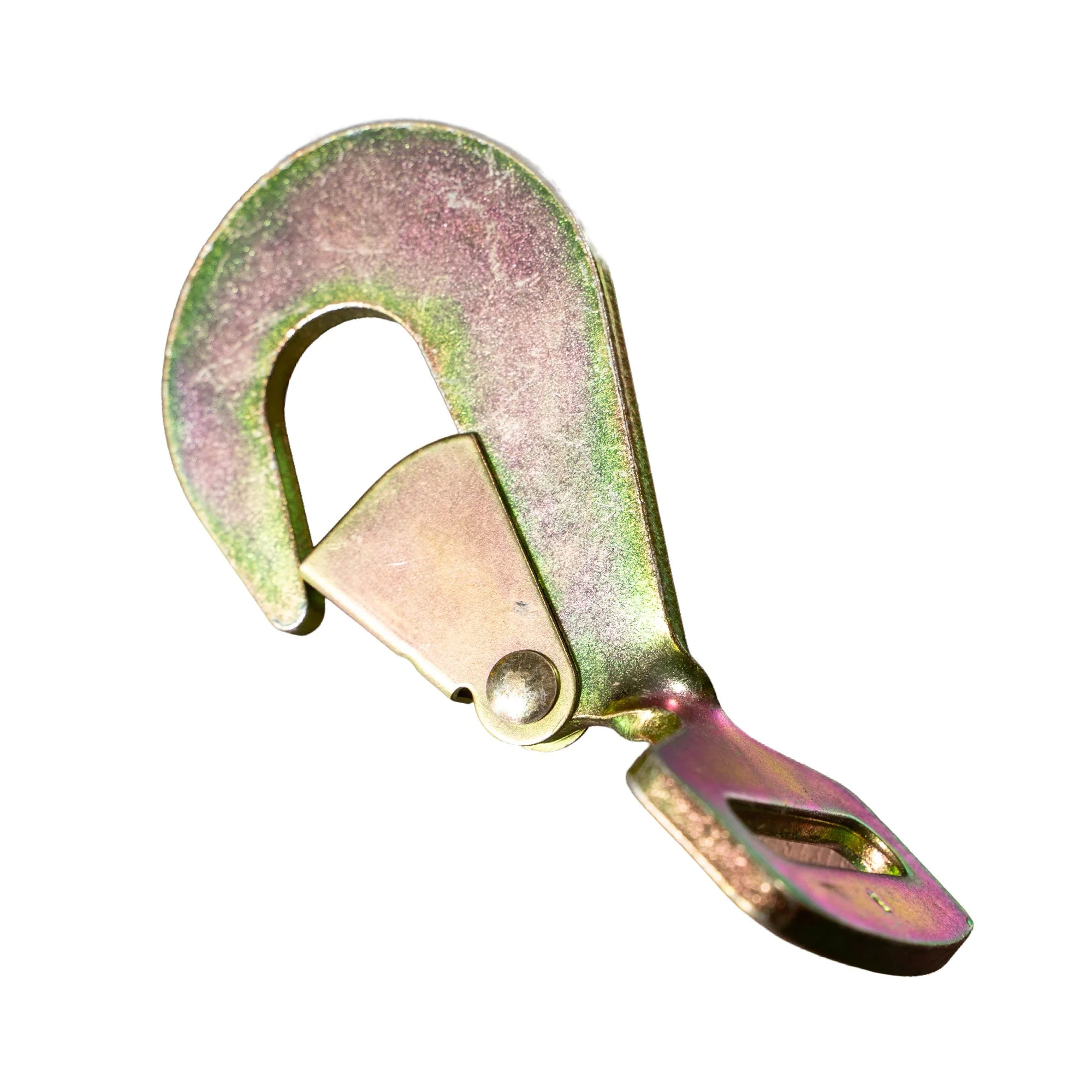

90° Snaphook

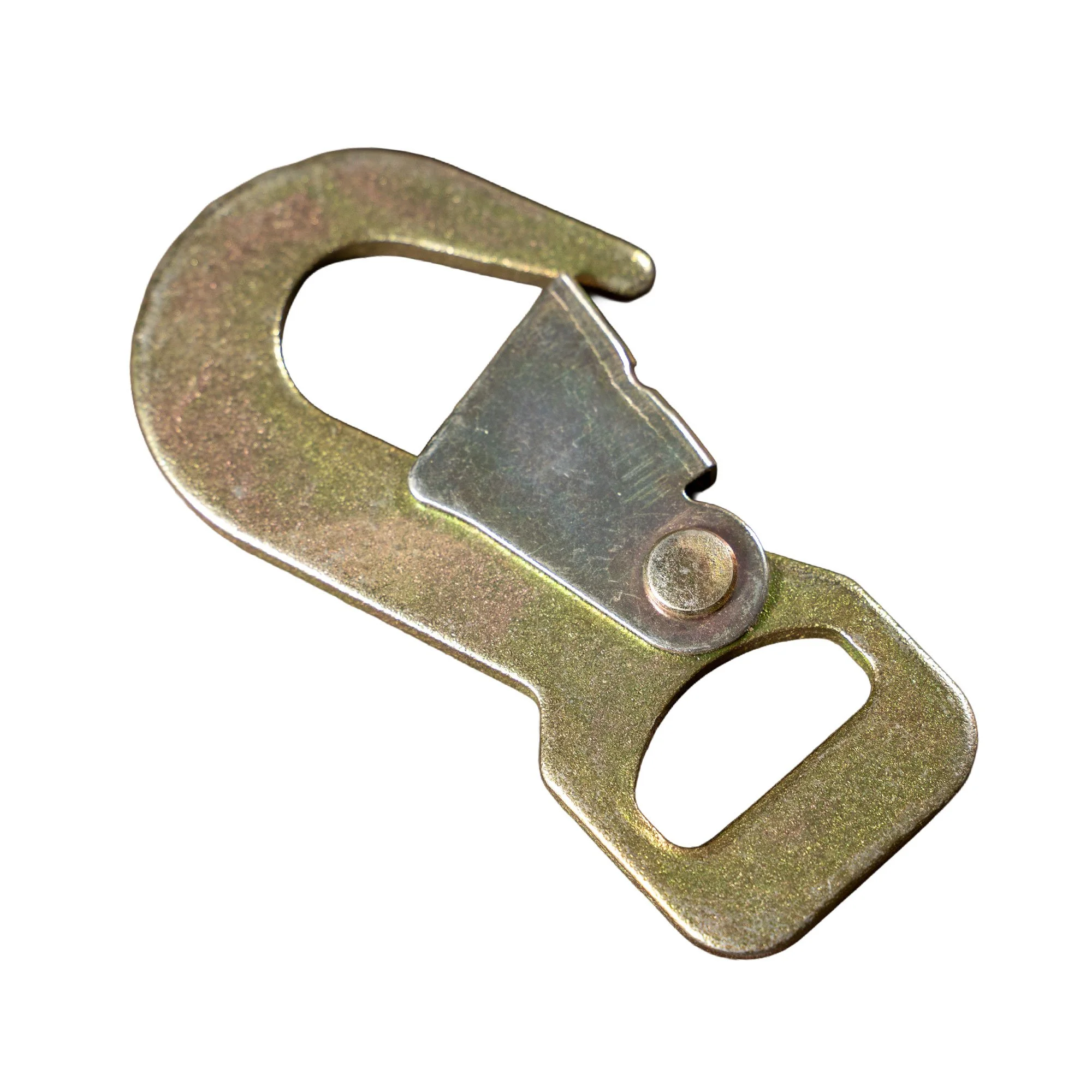

Snaphook

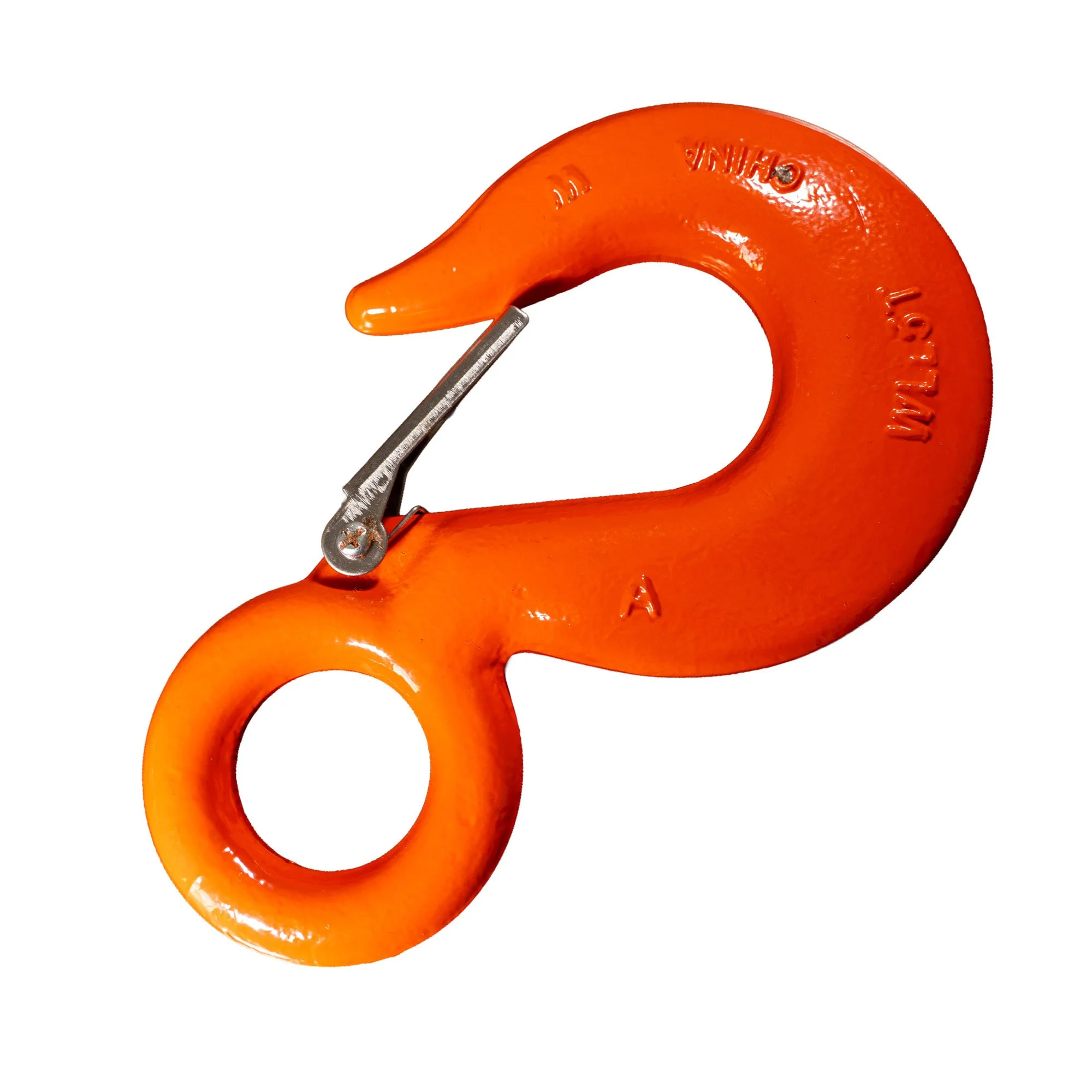

Sling Hook

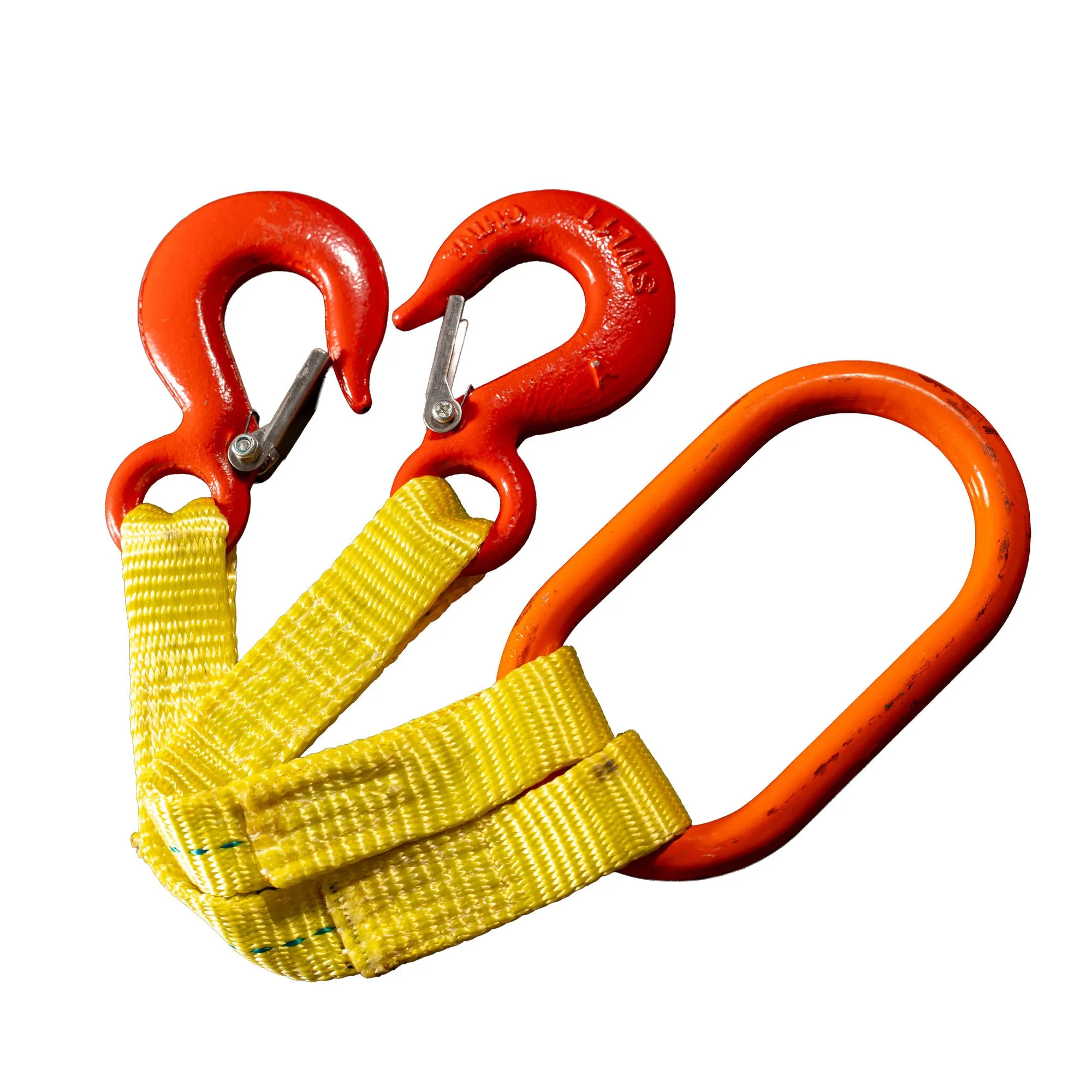

Technical Sling Hook

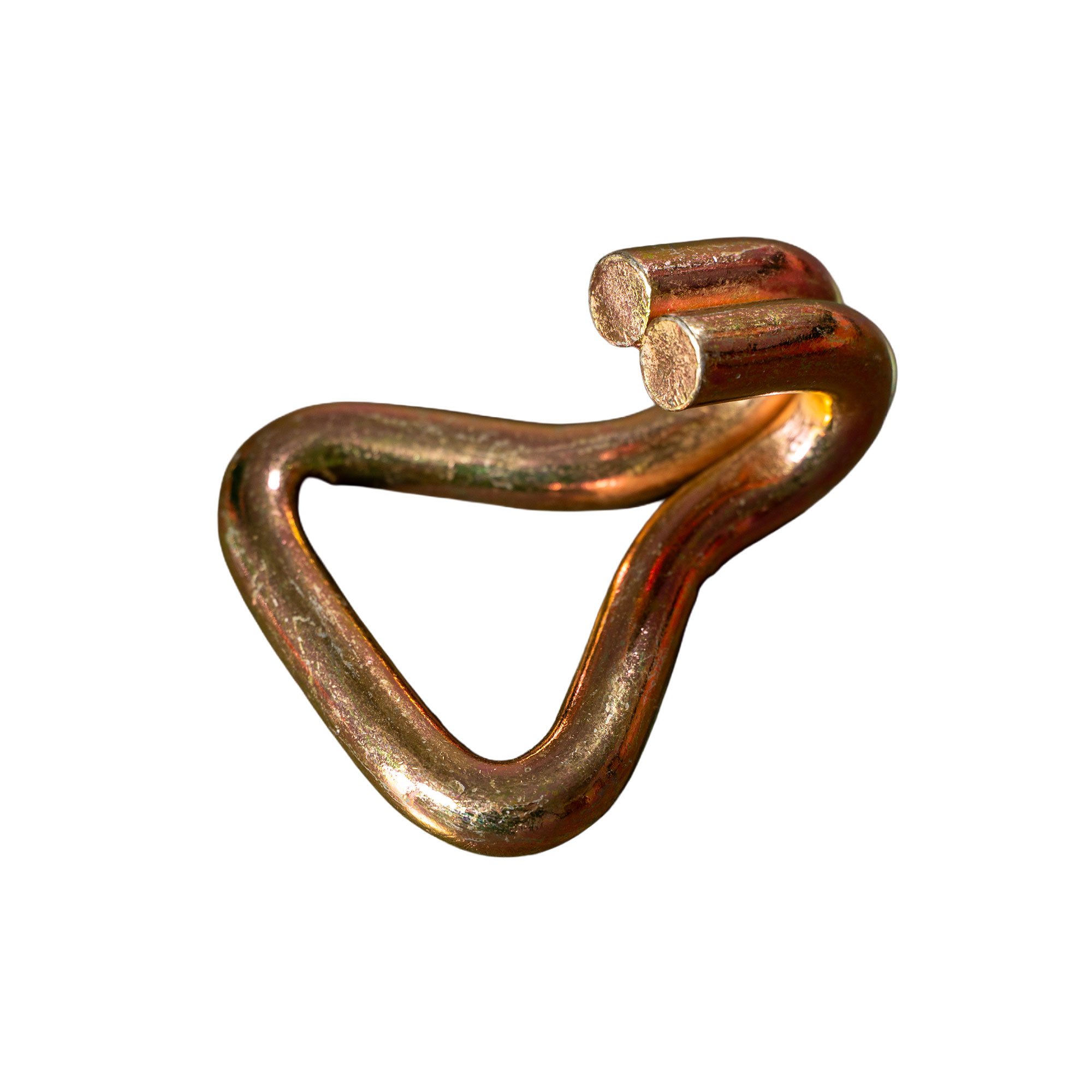

Wire Hook

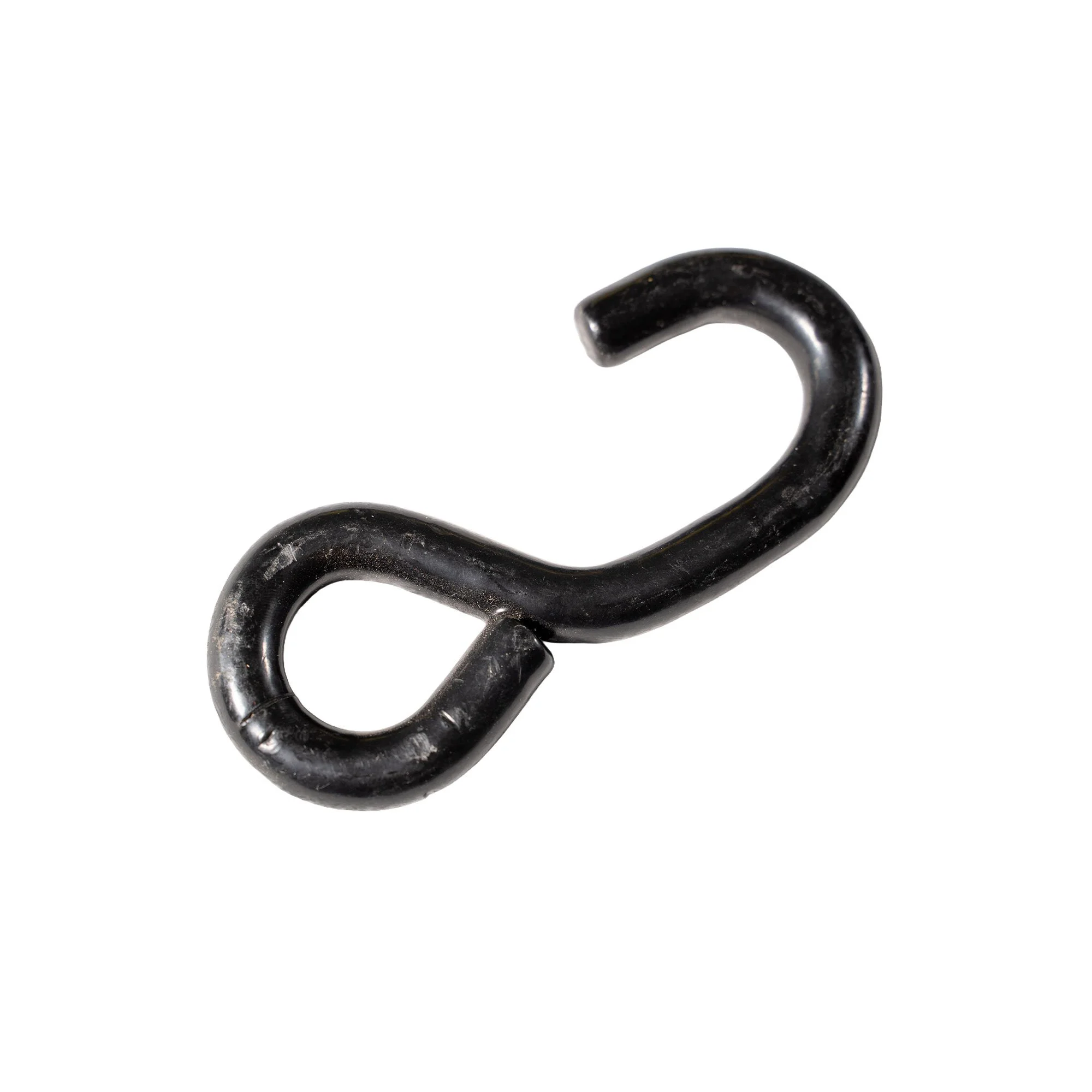

S-Hook

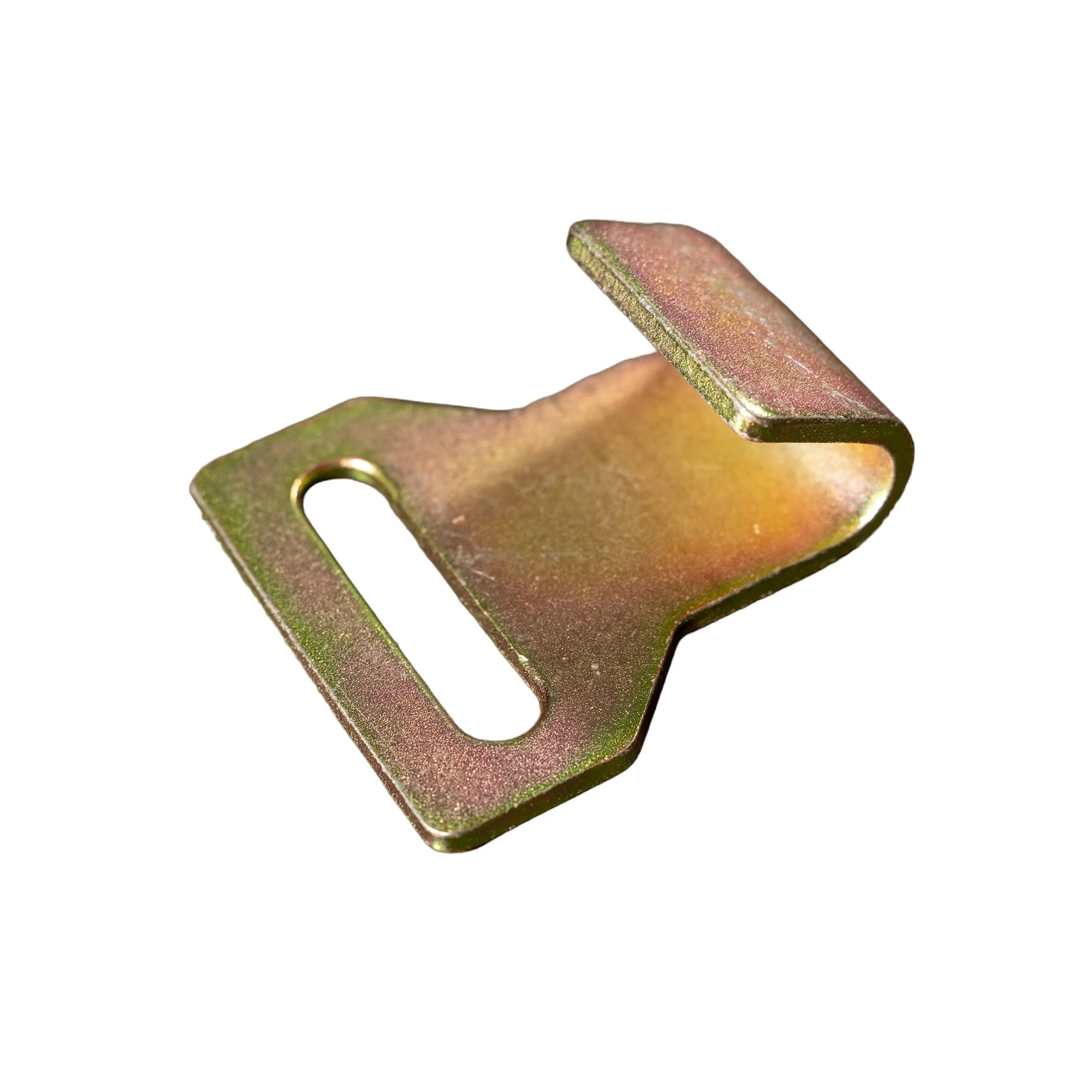

Flat Hook 1"

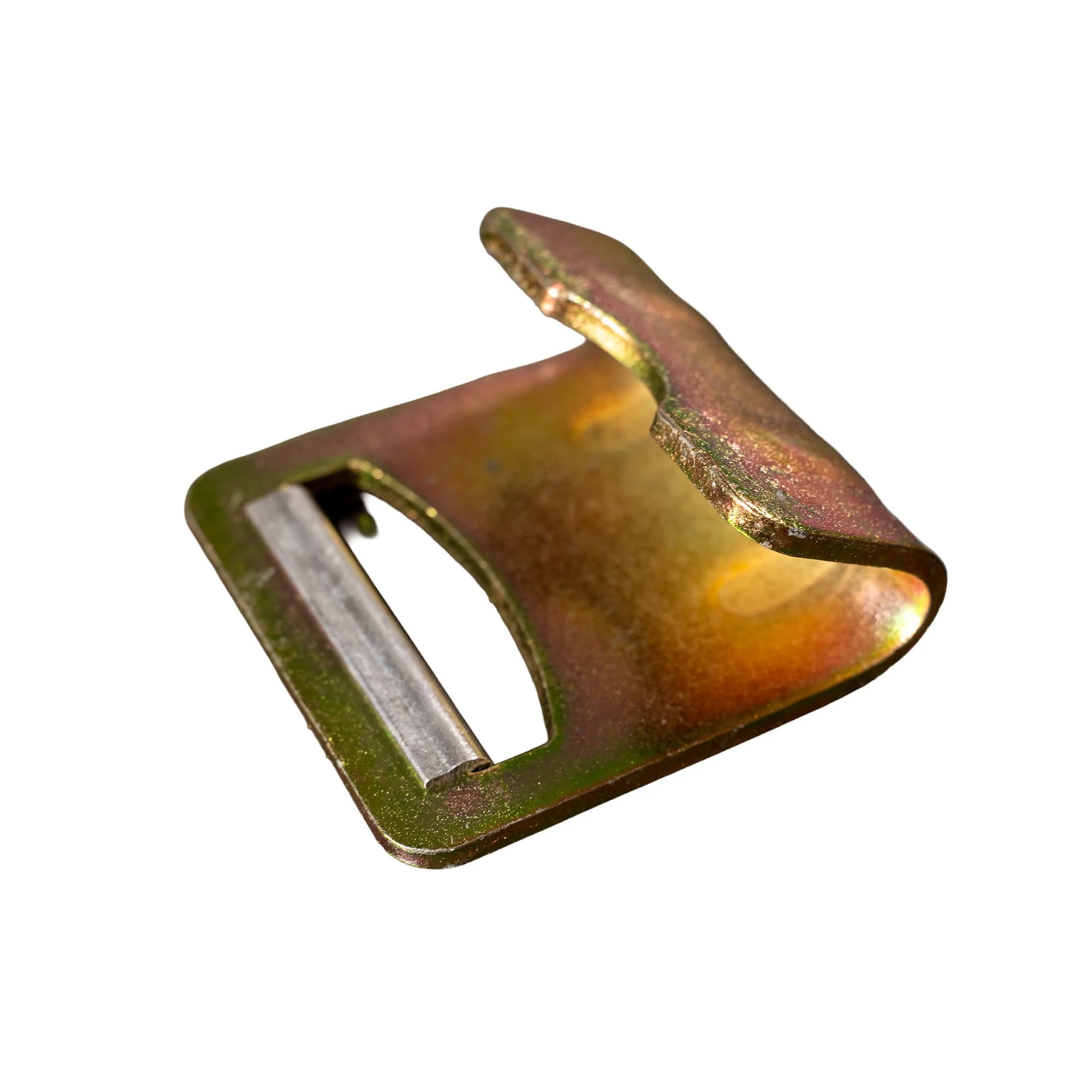

Flat Hook 2"

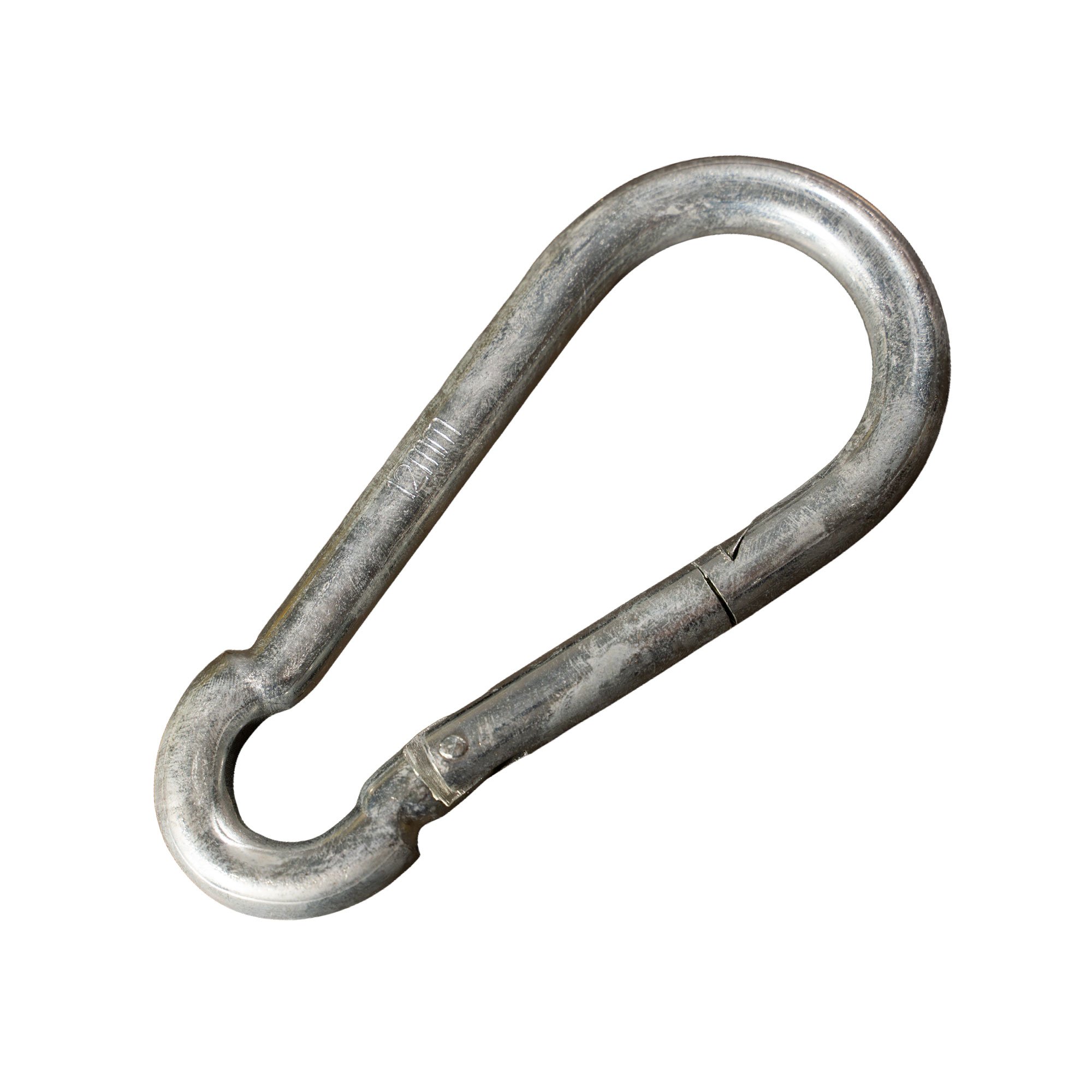

Carabiner

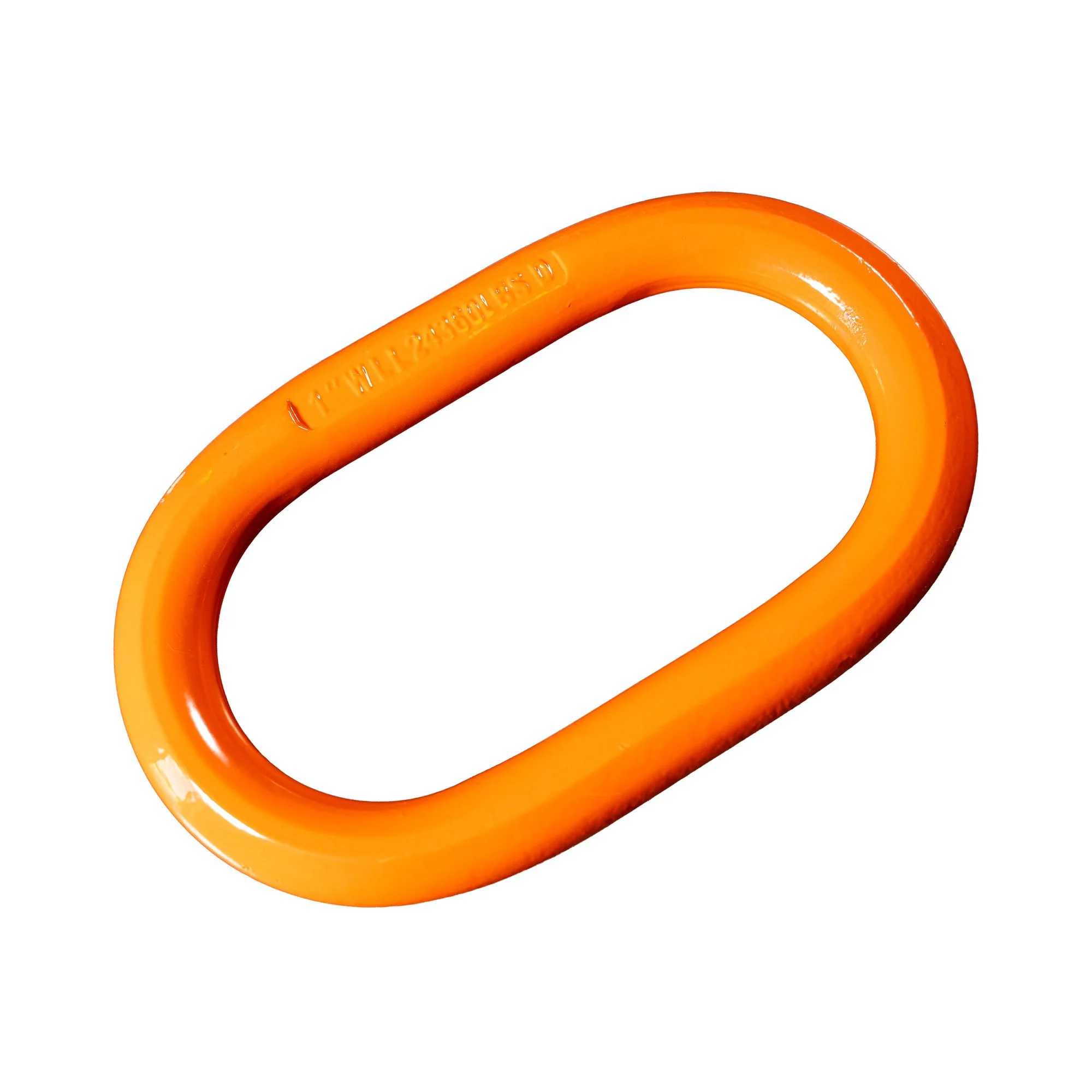

Master Link

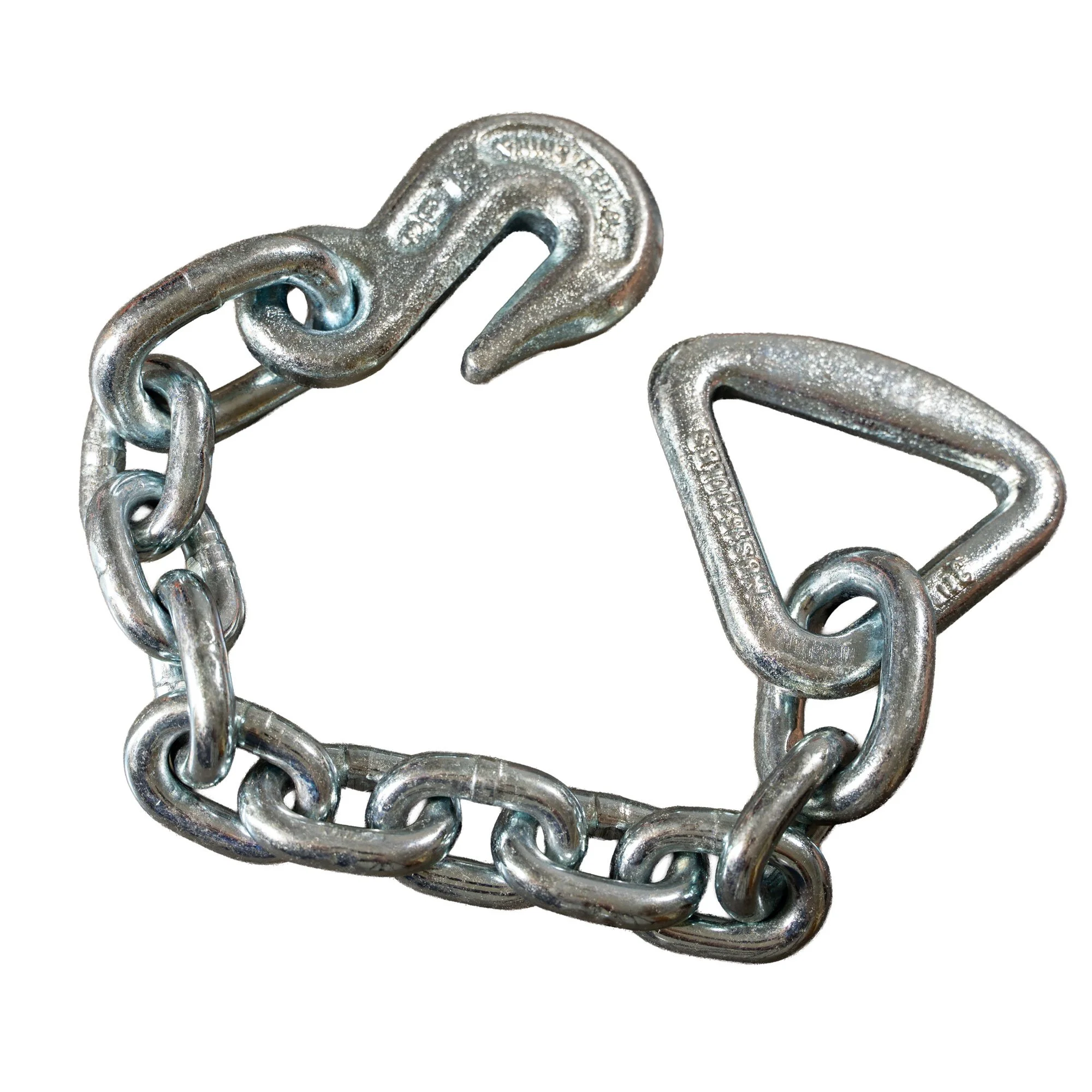

Tail Chain
Triangle Fitting

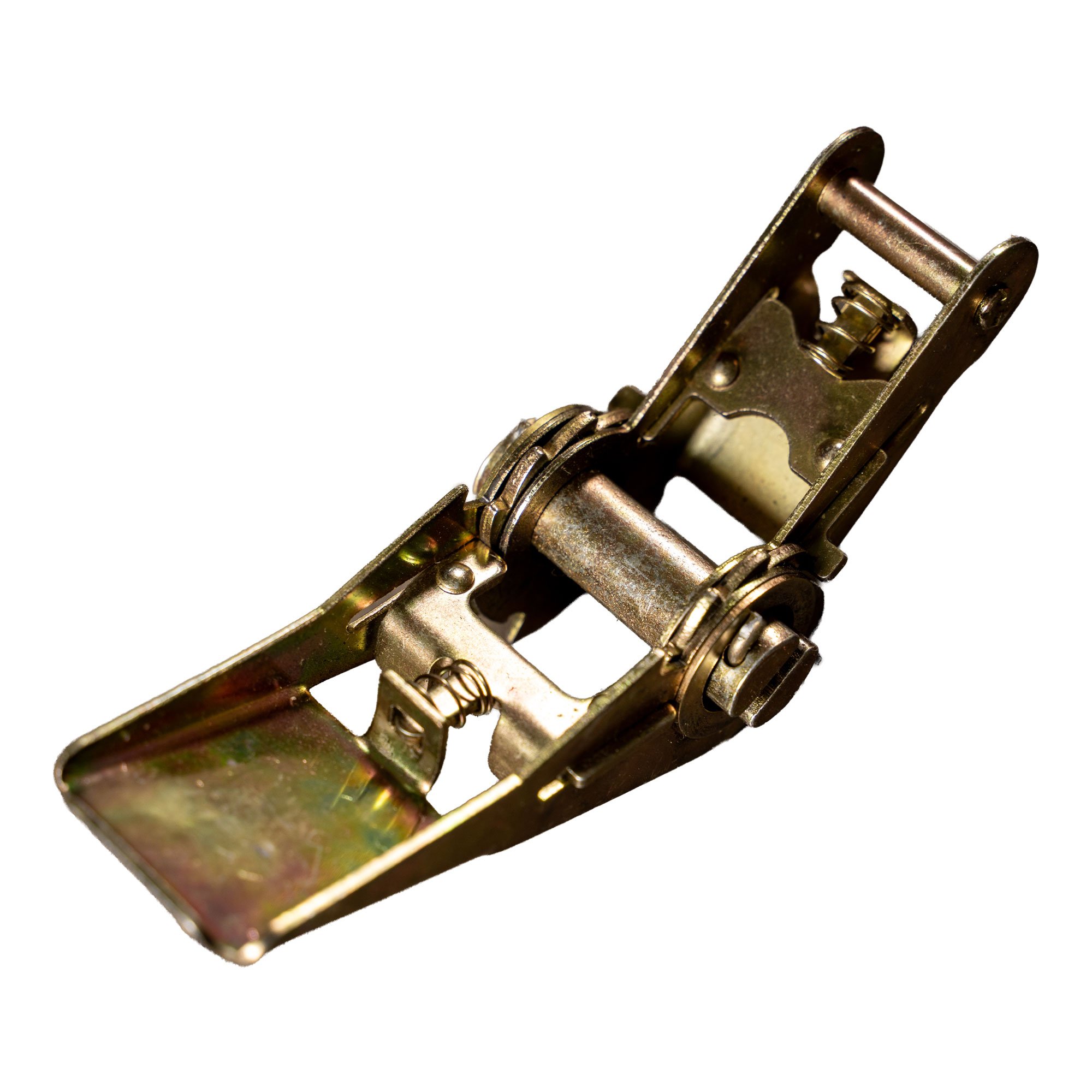

Ratchet

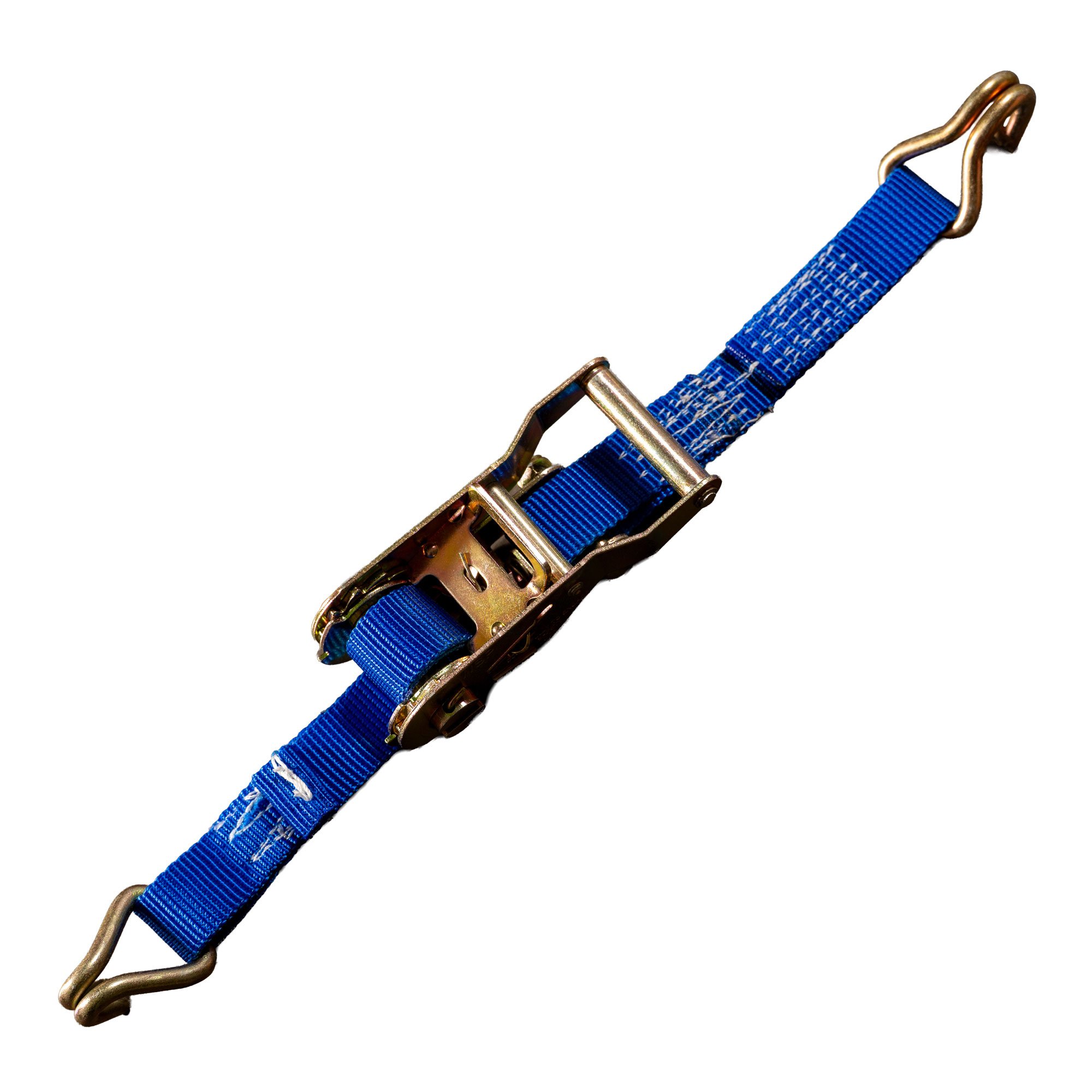

Ratchet 1"

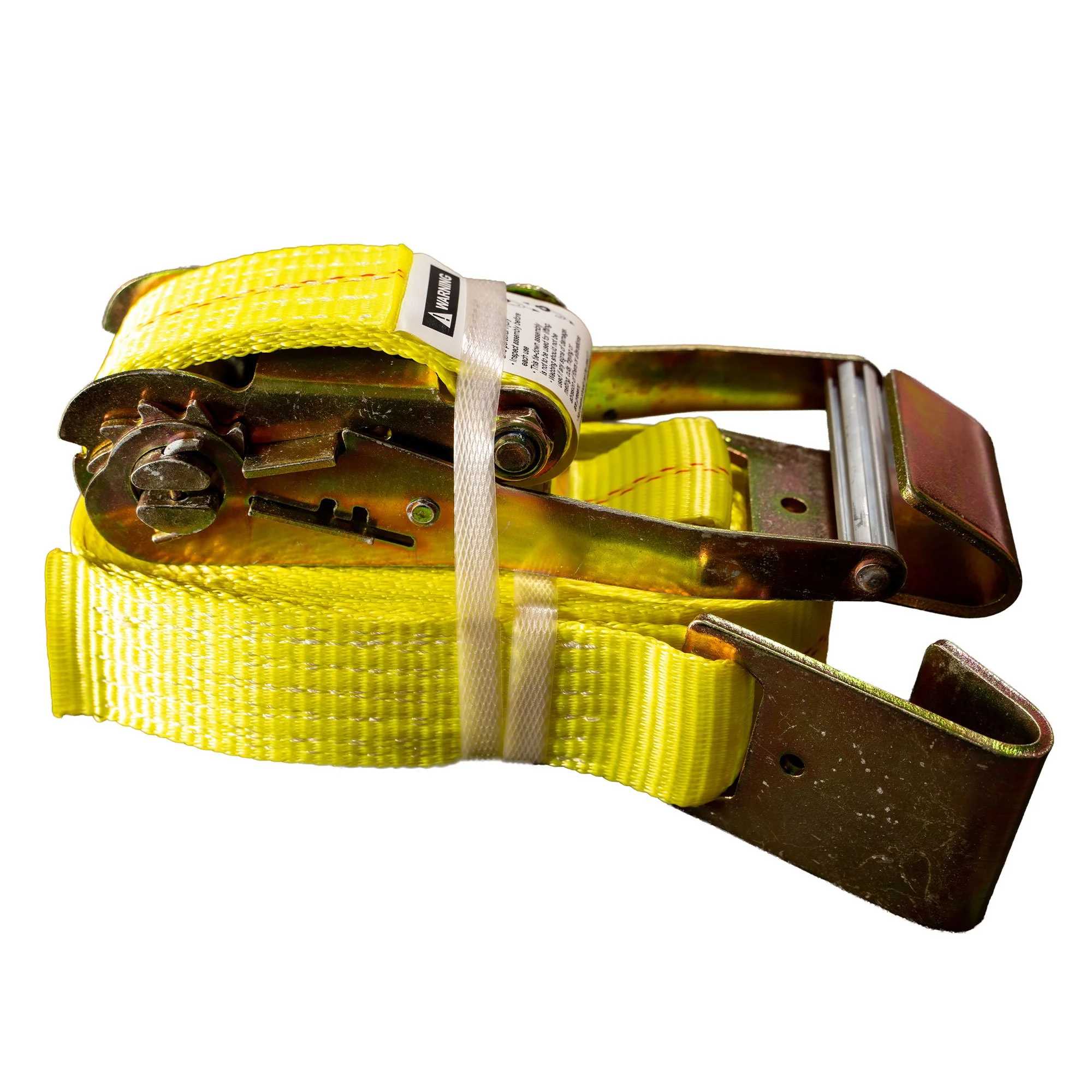

Ratchet 2" Flathook

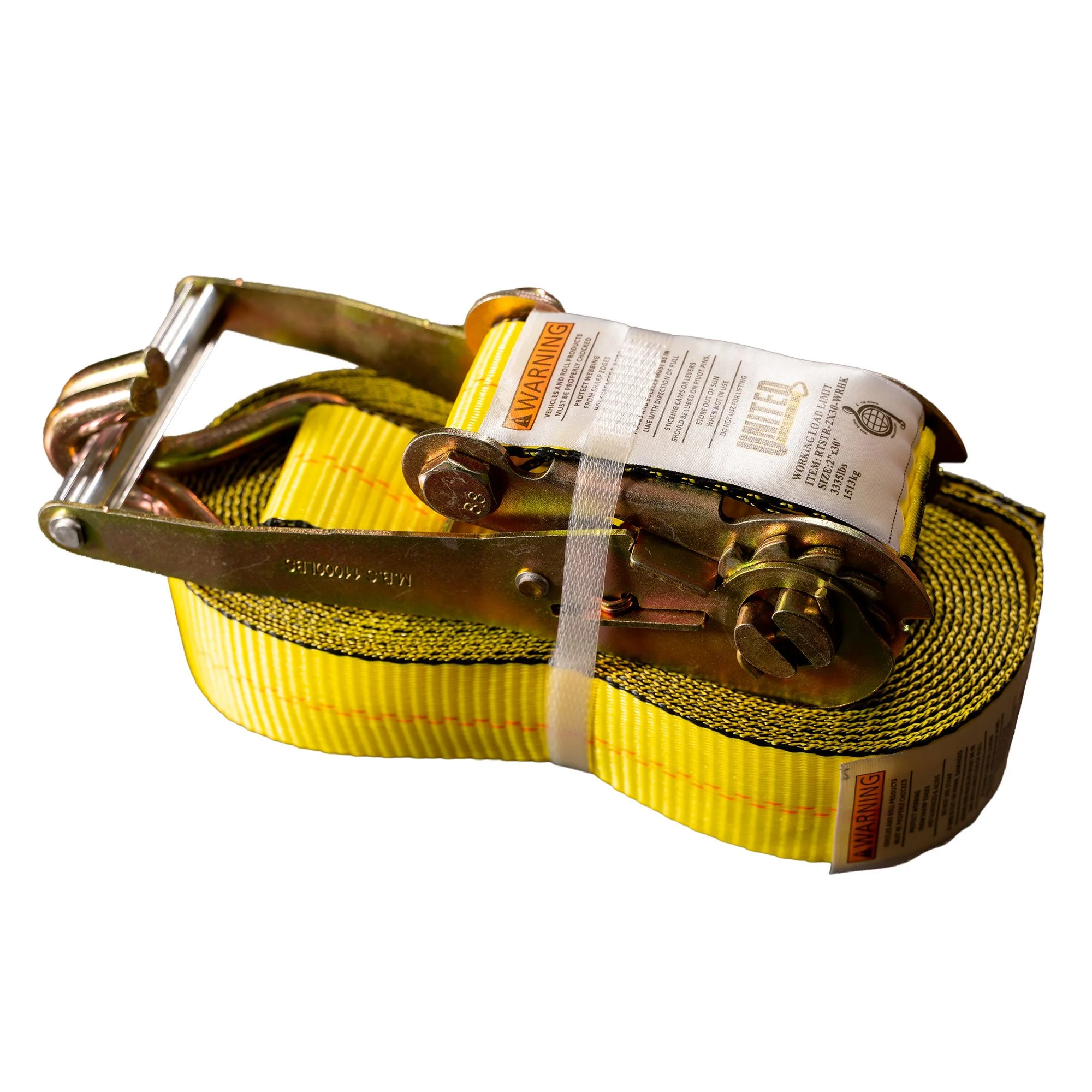

Ratchet 2" Wirehook

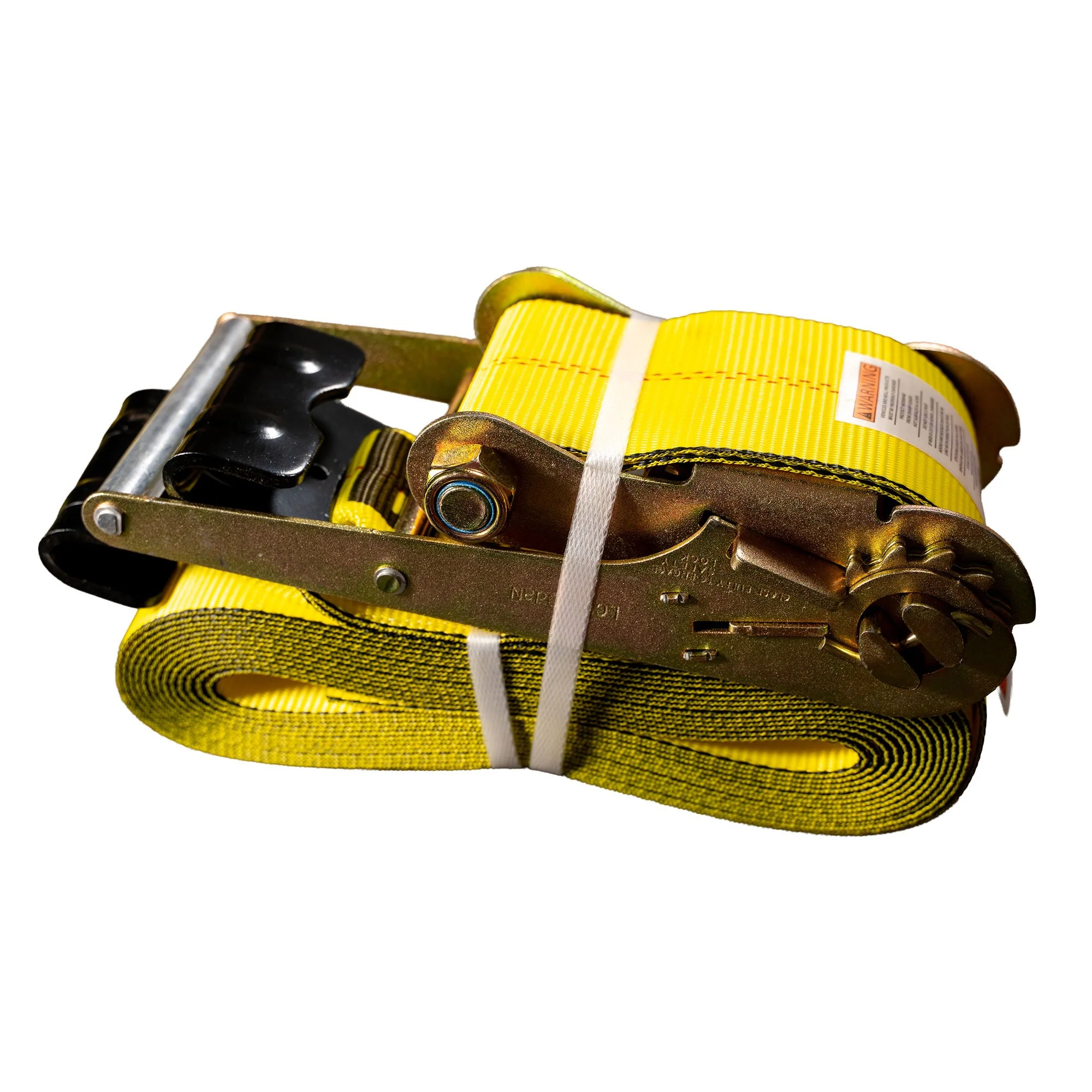

Ratchet 4" Flathook

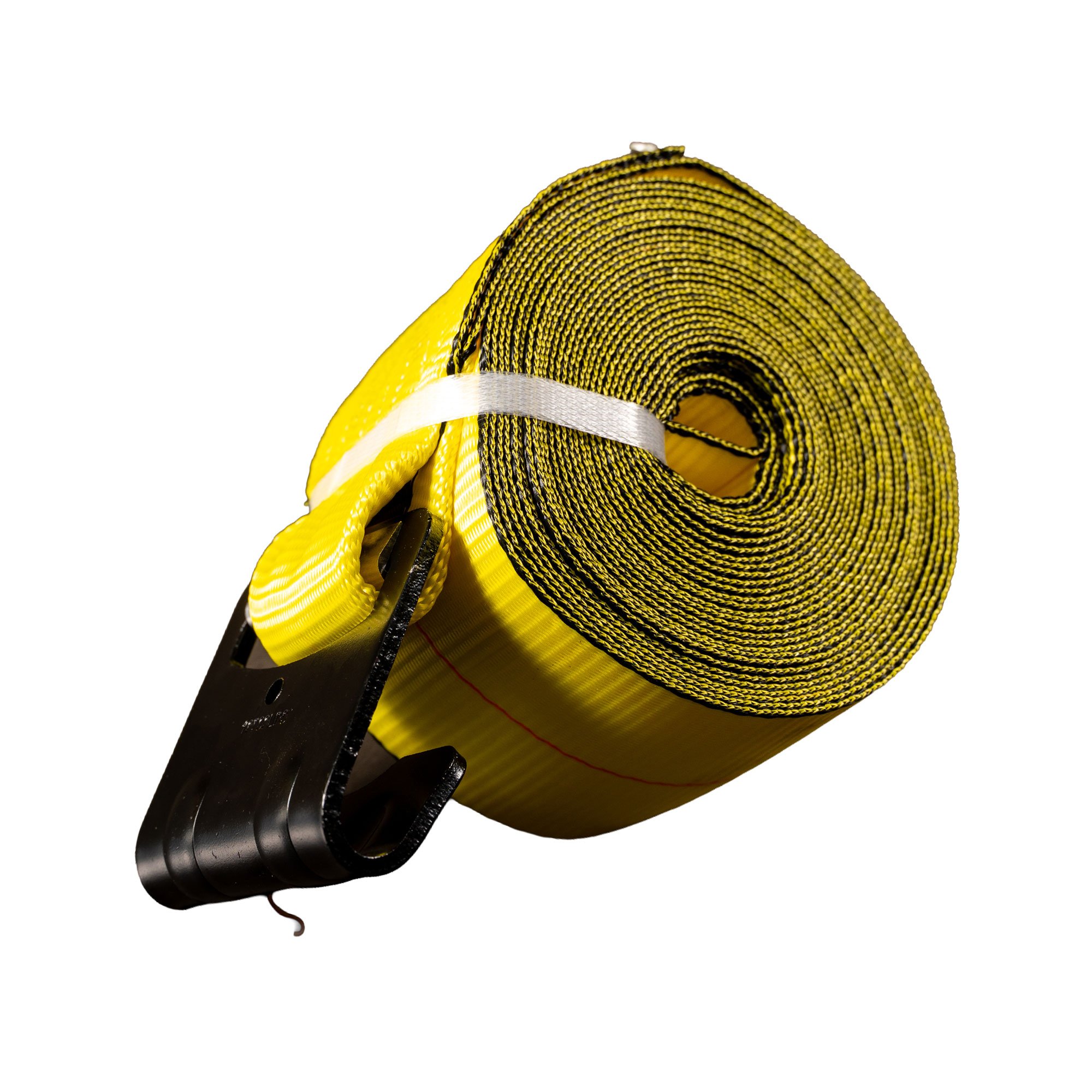

Winch Strap 4" Flathook

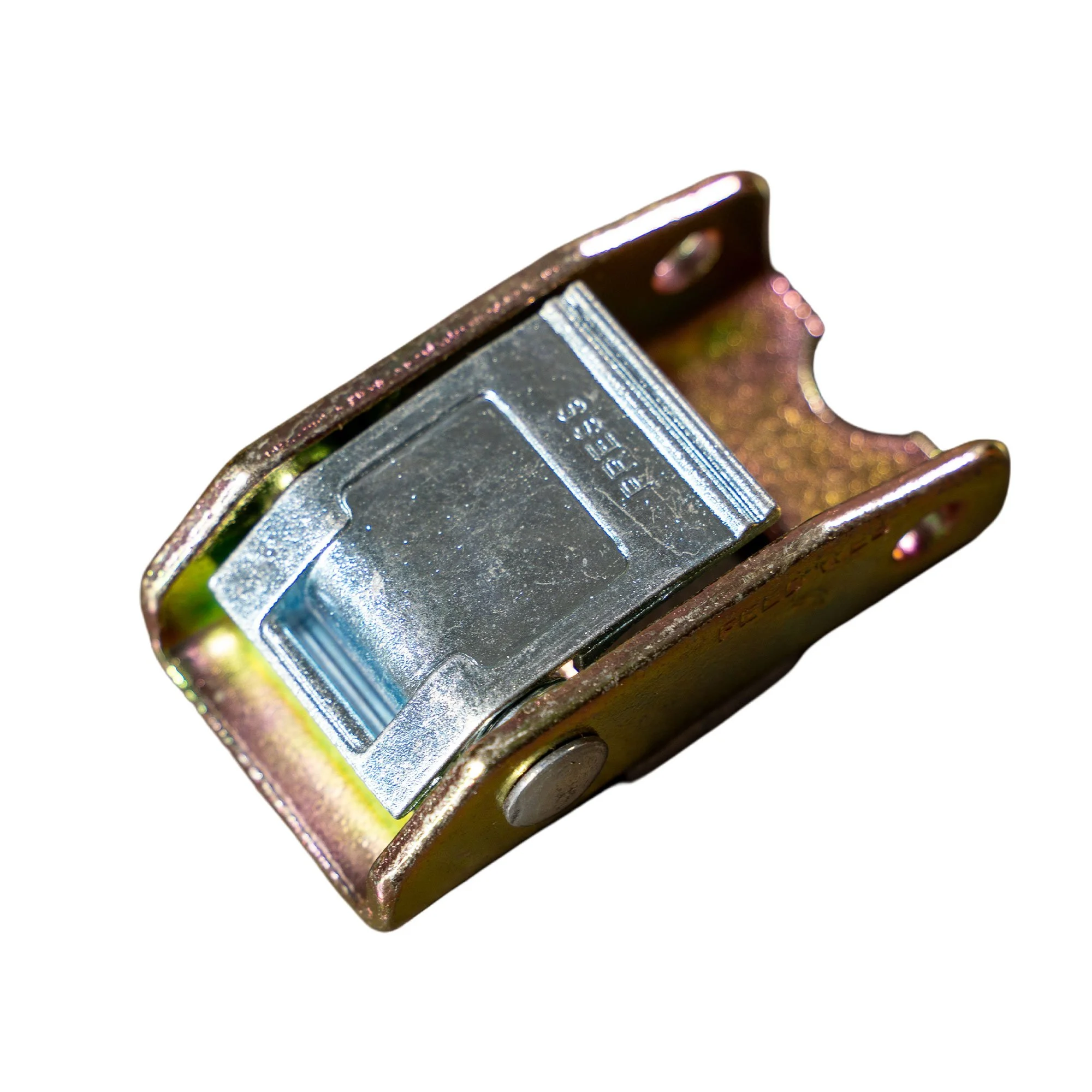

Cam Buckle

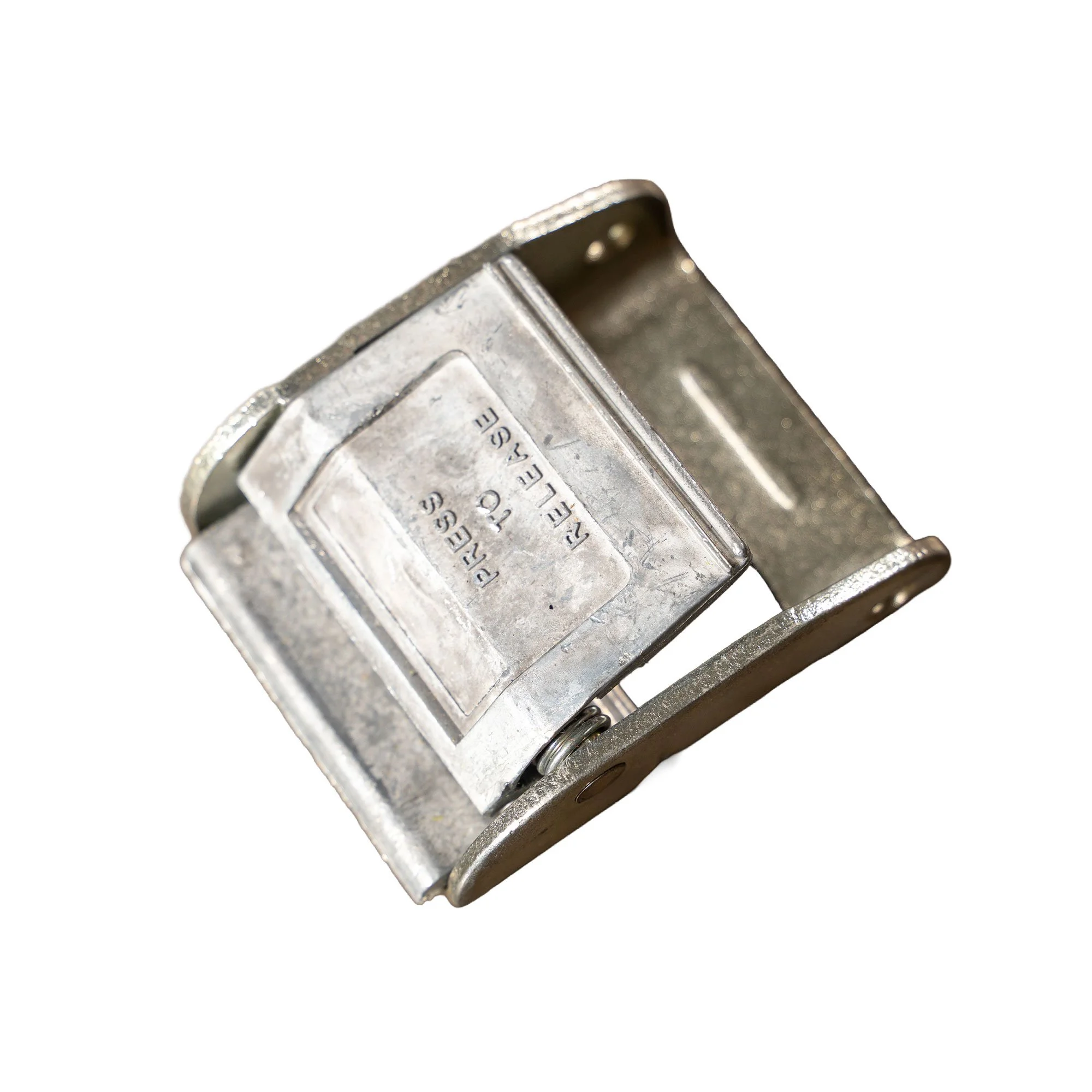

Cam Buckle 2"

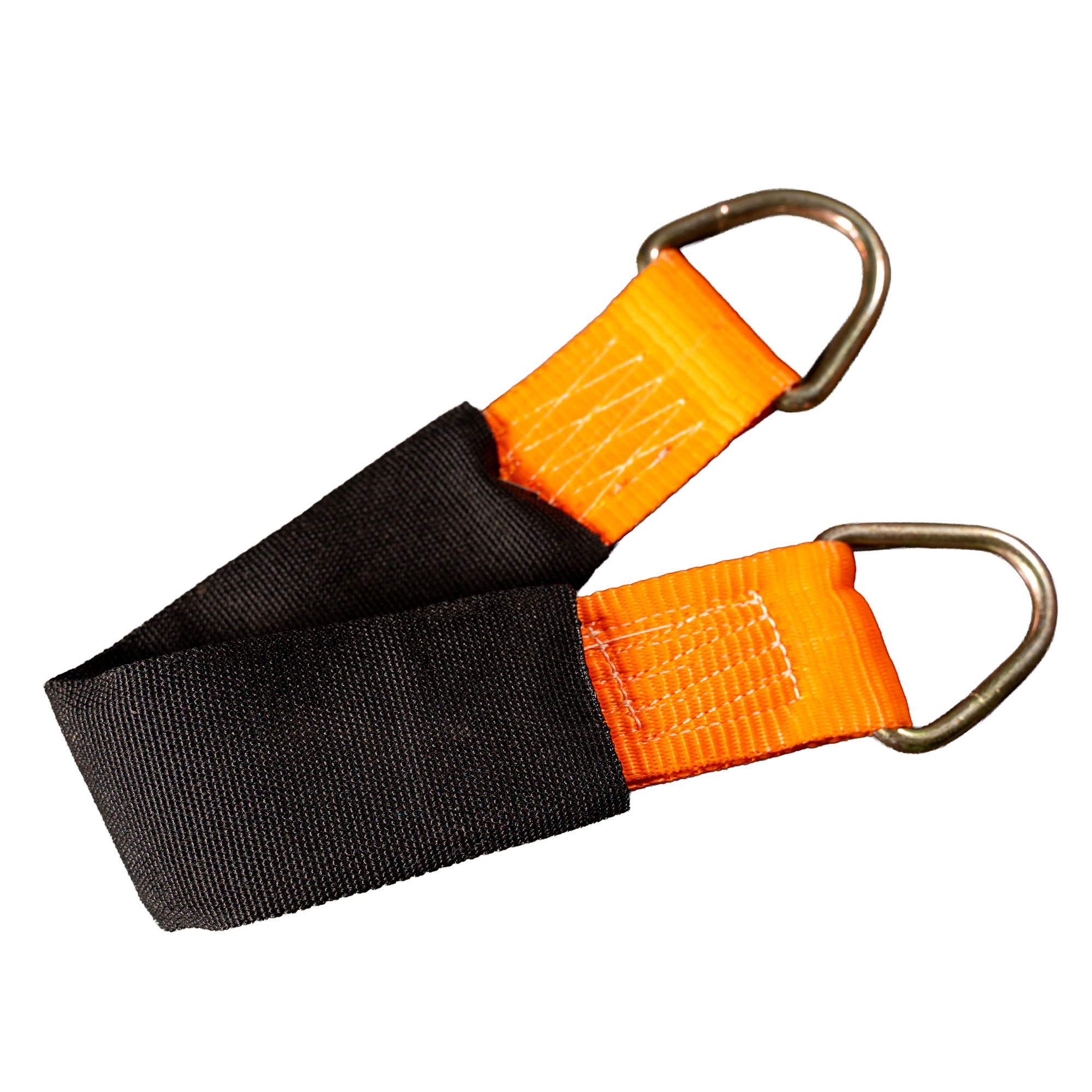

Axle Strap
Water Can Strap

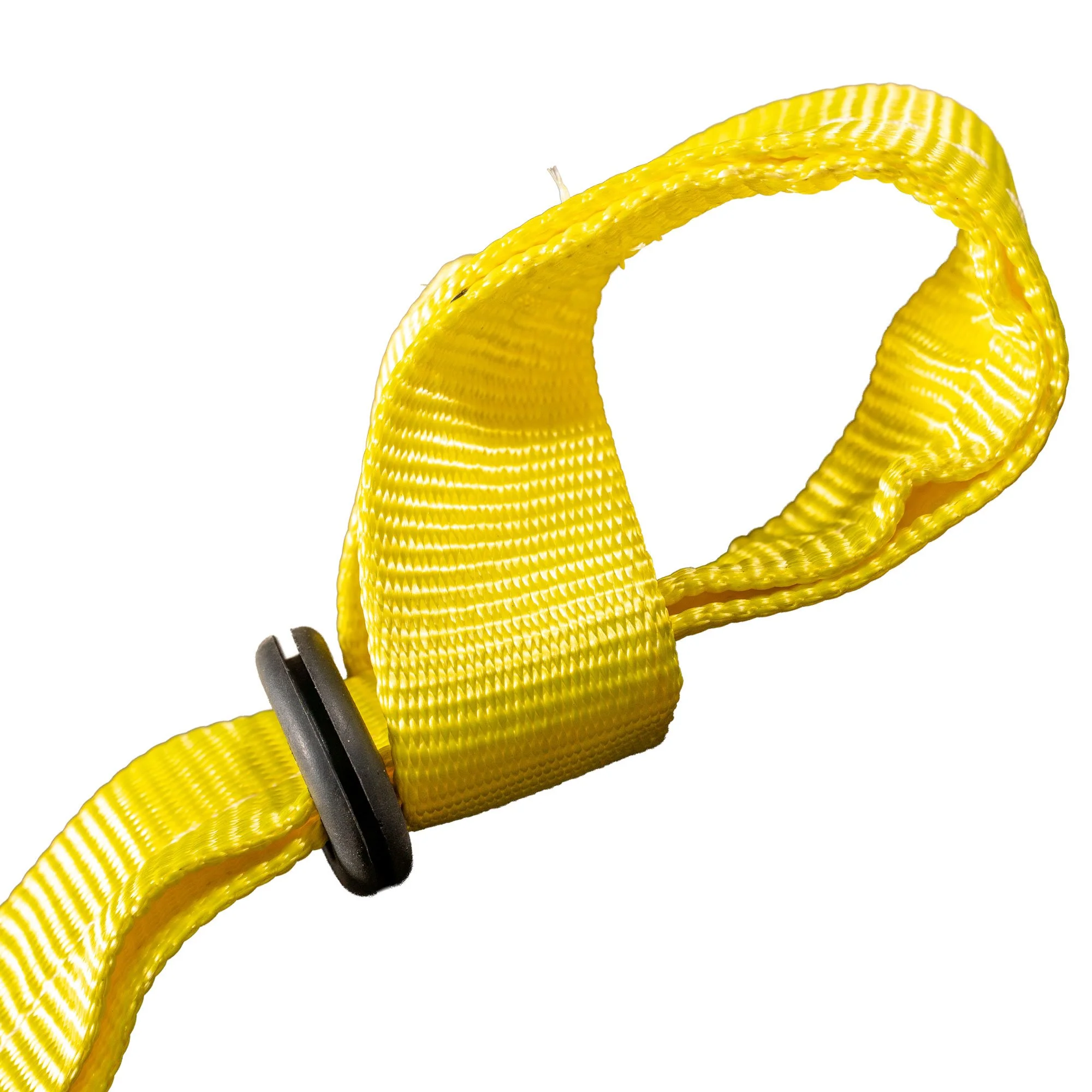

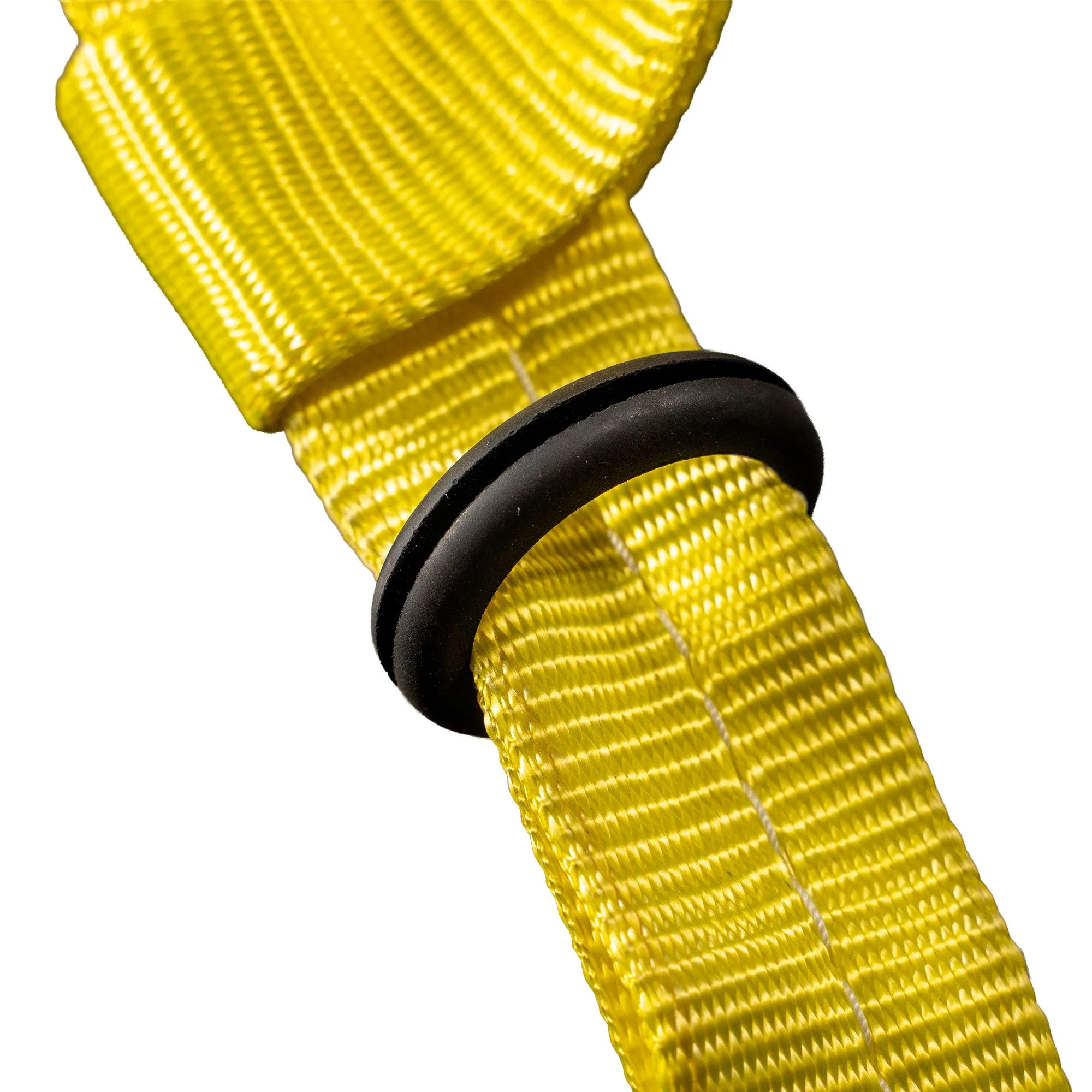

Whip Check 2”
Whip Check 2"
Don't see what you need?
We build custom slings to your exact specs.
